60x60 Servo Motor Bracket (MBA12-D) for FK12

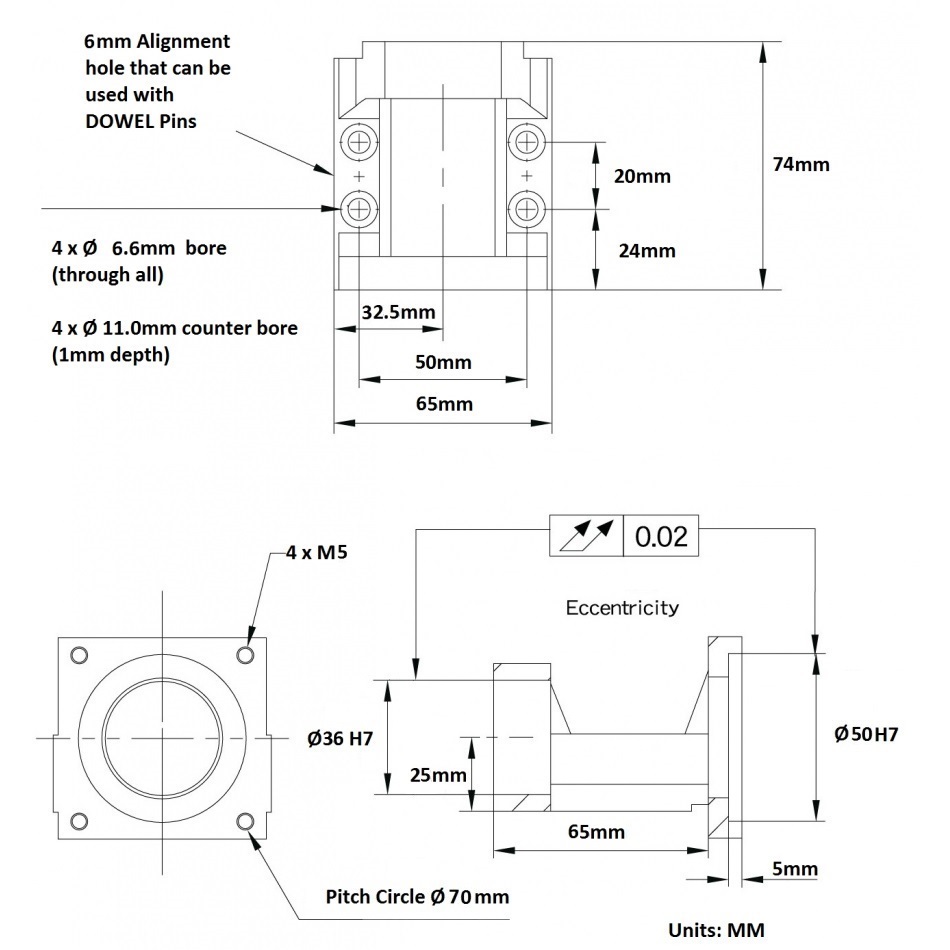

Motor Bracket made from steel. It has a 60x60 flange that is compatible with most 60x60 Flanged ServoMotors or Steppermotors. The bracket has datum surface on the bottom, that also has two 6mm dowel pin holes. These can be used to get the perfect alignment when placing back on a machine frame. Also the alignment between bearing and flange is within 0,02mm since the machining is done in one operation. When building a CNC machine or other special machine, this is an interesting part to have, since it saves a lot of time, that is normally spent on making a bracket. This bearingblock is compatible with the BF12 floating bearing block, (same height from datum surface). Most commonly the bearing block is used in combination with 20mm ballscrews.

Component features:

• Compatible with 60x60 Flange size servo motors (DELTA)
• Steel Housing
• High Quality Product Made in TAIWAN
• 4 x M5x20 DIN912 bolts included for mounting the servomotor
• 4 x M4x12 DIN 912 bolts included for mounting the FK12 fixed bearing block
• FK Fixed Bearing not included (don't forget to order it! FK12)
• Mosten often used with HIWIN 20mm ballscrews
