ATC71 Cable set Custom Length
ATC71 Cable set Custom Length
ATC71 Cable set Custom Length
ATC71 Cable set Custom Length
ATC71 Cable set Custom Length
ATC71 Cable set Custom Length
ATC71 Cable set Custom Length
ATC71 Cable set Custom Length
ATC71 Cable set Custom Length
ATC71 Cable set Custom Length

ATC71 Cable set Custom Length

Article number 3678
DamenCNC
Not in stock Not in stock

Keep me updated

Unfortunately, the product is currently sold out. Leave your details and you'll receive an e-mail when it's back in stock.

€350,00 Excluding VAT Price per set
Add to cart
Description
Attachments
Compatible Products

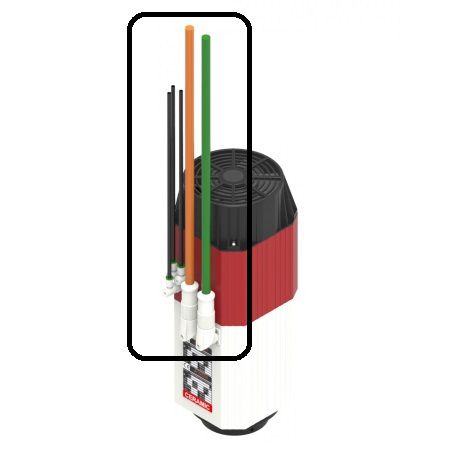

The TeknoMotor ATC, uses very high quality M23 connectors. The M23 connector has crimp contacts, that require special tooling to make. Even the most basic crimp tool costs around 450 euro. So we assume our clients do not have this tooling, and that we make the cabling for them. We have invested in all the tooling to be able to make the cables to size. Standard we have a M23 connectors on the ATC, and open end wiring on the other side, assuming direct wiring to CNC & VFD. In case you need 2 connectors, and chassis contra connector, contact us. We can make it to size for you.

Component features:
  • Designed and made for Teknomotor ATC-71, fits all size, so A B and C model. SN and LN, ISO30 and HSK F63
  • Custom sizes 1-2 weeks leadtime (we have all tooling to make the cables)

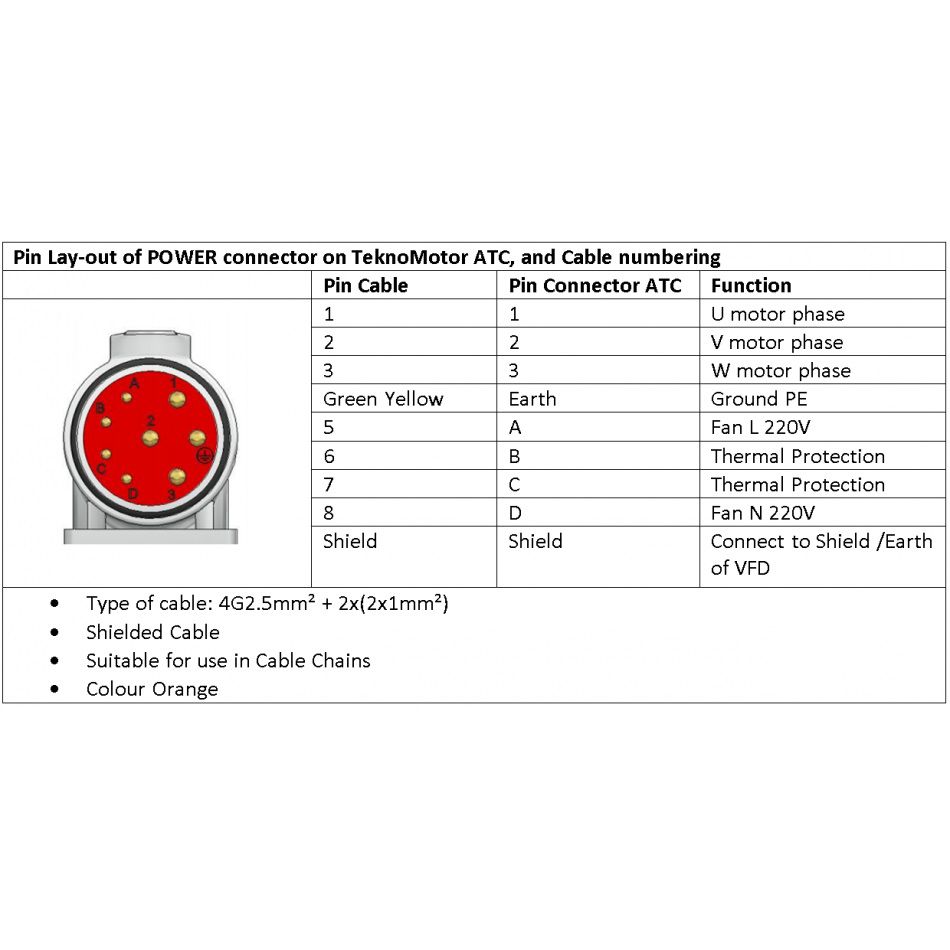

  • Power + Data cable
  • Side of ATC M23 connector, other end open wiring
  • On request M23 can be made on both sides, or a contra chassis plug.
