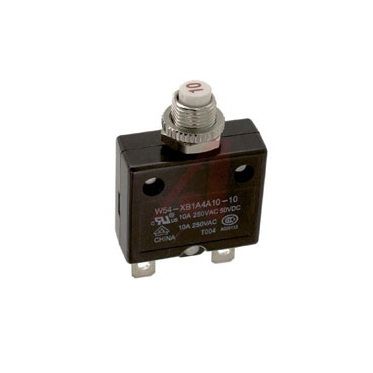

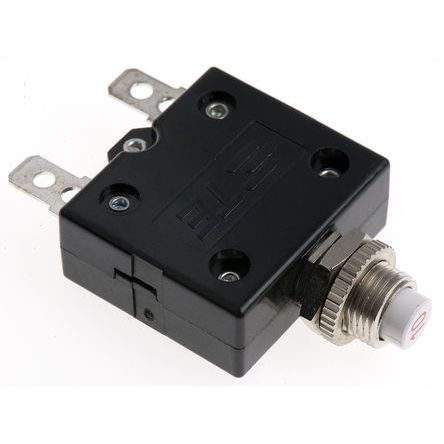

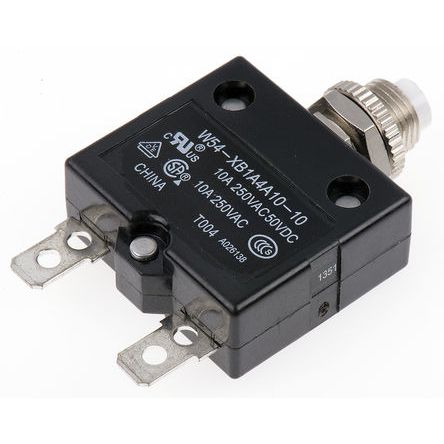

Automatic Fuse 10A Panel Mount (W54-XB1A4A10-10)
Article number 1916
TE Connectivity
Limited stock
| General conditions | ||
| Quantity 5 - > | 5,00 % on the retail price of €6,00 | €5,70 |
| Quantity 10 - > | 10,00 % on the retail price of €6,00 | €5,40 |
| Quantity 20 - > | 15,00 % on the retail price of €6,00 | €5,10 |
| Quantity 50 - > | 20,00 % on the retail price of €6,00 | €4,80 |
€6,00
Excluding VAT
Price per piece
Description
Attachments
Discount
Compatible Products
The W54-XB1A4A10-10 is a 1-pole 10A panel-mount Thermal Circuit Breaker with push to reset actuator and series trip function. The W54 series circuit breaker has quickly connects termination, white with red rate marking button and has breaking capacity of 10A at 250VAC/50VDC voltage. Button extends for visual trip indication Push button to reset breaker 6.35mm Straight quick connect tab termination
Component features:
- Current rating 10Amps
- Voltage rating 250 V ac
- W54 series Push To Reset Only P&B Thermal Circuit Breaker
- Cannot be manually tripped
- Button extends for visual trip indication
- Push button to reset breaker.
- Reset Time: 60 seconds
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
1916-1 Automatic Fuse 10A Panel Mount (W54-XB1A4A10-10) STEP214 |
|
1916-2 Automatic Fuse 10A Panel Mount (W54-XB1A4A10-10) STEP242 |
 |
1916-3 Automatic Fuse 10A Panel Mount (W54-XB1A4A10-10) Datasheet |
|
1916-4 Automatic Fuse 10A Panel Mount (W54-XB1A4A10-10) Product Family |
