Automatic Fuse 5A Panel Mount (W58-XB1A4A-5)
Article number 4316
TE Connectivity
In Stock
| General conditions | ||
| Quantity 5 - > | 5,00 % on the retail price of €7,50 | €7,13 |
| Quantity 10 - > | 10,00 % on the retail price of €7,50 | €6,75 |
| Quantity 20 - > | 15,00 % on the retail price of €7,50 | €6,38 |
| Quantity 50 - > | 20,00 % on the retail price of €7,50 | €6,00 |
€7,50
Excluding VAT
Price per piece
Description
Attachments
Discount
Compatible Products
The W58-XB1A4A-5 is a 1-pole 5A panel-mount Thermal Circuit Breaker with push to reset actuator and series trip function. The W58 series circuit breaker has quickly connects termination, white with red rate marking button and has breaking capacity of 5A at 250VAC/50VDC voltage. Button extends for visual trip indication Push button to reset breaker 6.35mm Straight quick connect tab termination
Component features:
- Current rating 5Amps
- Voltage rating 250 VAC
- W58 series Push To Reset Only P&B Thermal Circuit Breaker
- Cannot be manually tripped
- Button extends for visual trip indication
- Push button to reset breaker
- Reset Time: 60 seconds
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
4316-1 Automatic Fuse 5A Panel Mount (W58-XB1A4A-5) STEP214 |
|
4316-2 Automatic Fuse 5A Panel Mount (W58-XB1A4A-5) STEP242 |
 |

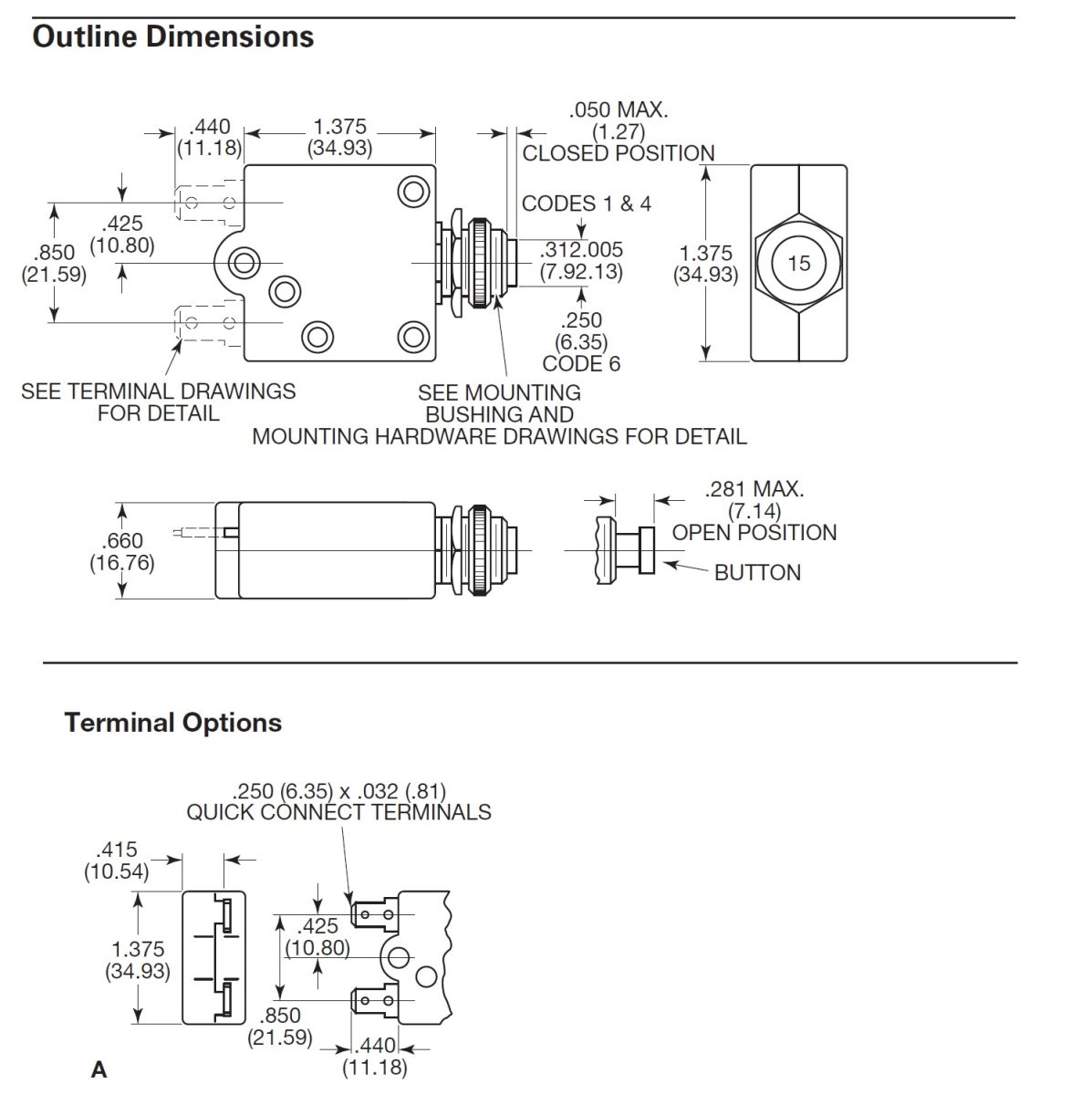

4316-3 Automatic Fuse 5A Panel Mount W58-XB1A4A-5 Datasheet |
|
4316-4 Automatic Fuse 5A Panel Mount W58-XB1A4A-5 Product Family |
