BK/FK 12 Ballscrew End Machining Fixed side
Article number 8112
DamenCNC
| General conditions | ||
| Quantity 2 - 4 | 10,00 % on the retail price of €75,00 | €67,50 |
| Quantity 5 - 9 | 20,00 % on the retail price of €75,00 | €60,00 |
| Quantity 10 - > | 30,00 % on the retail price of €75,00 | €52,50 |
€75,00
Excluding VAT
Price per Lathe Operation
Description
Attachments
Discount
Compatible Products
We have a DMG lathe in our workshop which can be used for machining the ends of the ballscrews, for example to fit the bearings or shaft couplers. We can perform a number of standard operations cost-effectively, including the BK/FK 12 Ballscrew End Machining Fixed Side. We will machine one end of the spindle to fit into the BK 12 and FK 12 Fixed Ballscrew Support Unit. For larger series, the price per operation will greatly improve.
Component features:
Component features:
-
Leadtime 1-2 weeks; urgent delivery on request
-
First order the 16mm or 20mm ballscrew and then select the desired end machining
-
Don't forget to order end machining for both the fixed side and floating side
-
Price only valid up to a maximum ballscrew length of 1250mm
-
Above 1250mm ballscrew length price is on request
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
8112-1 BK-FK 12 Ballscrew End Machining Fixed side STEP214 |
|
8112-2 BK-FK 12 Ballscrew End Machining Fixed side STEP242 |
 |
8112-3 BK-FK 12 Ballscrew End Machining Fixed side 2D Dimensions |
|

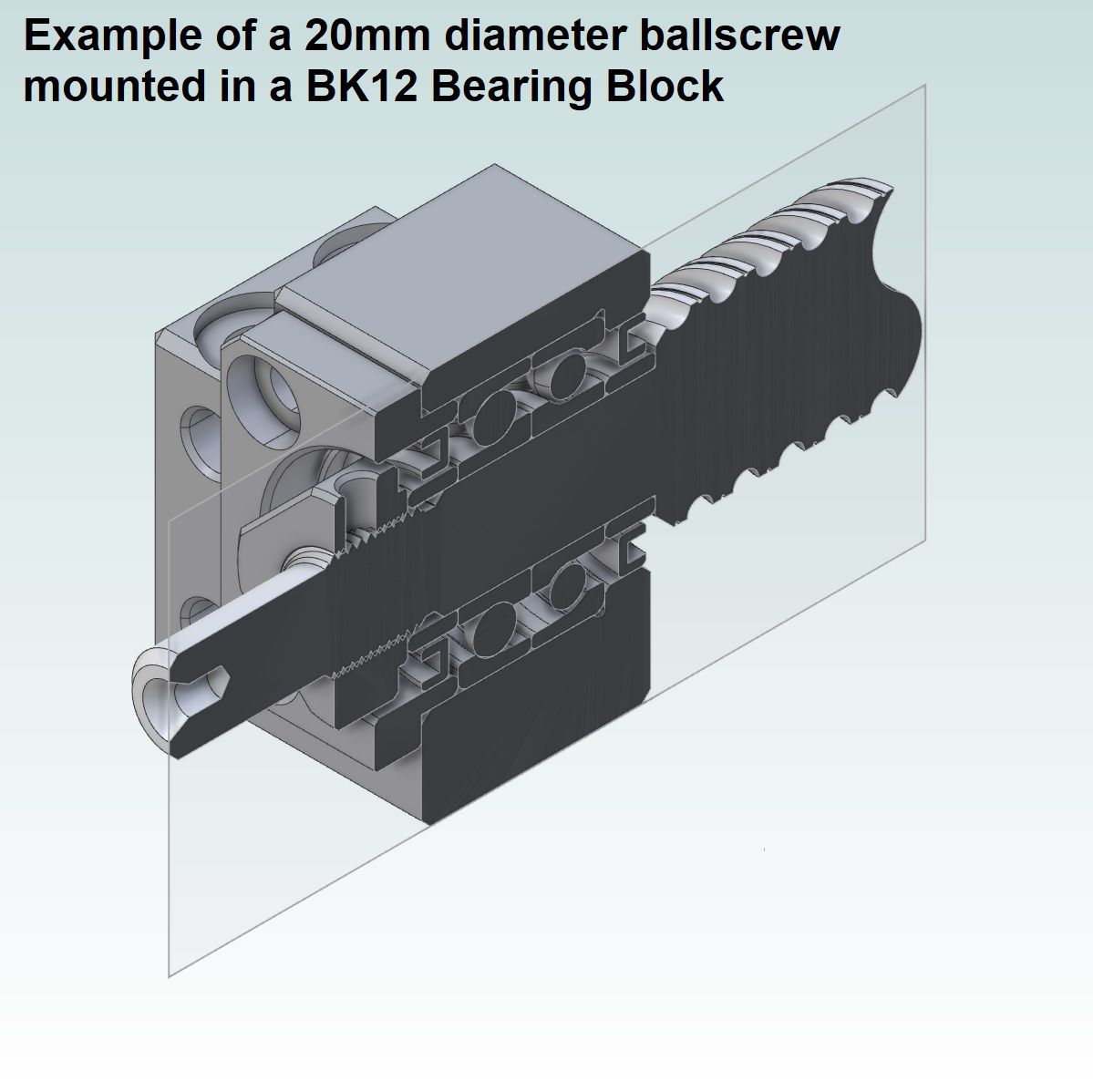

8112-4 BK-FK 12 Ballscrew End Machining Fixed side Example BK12 mounted STEP242 |
|
8112-5 BK-FK 12 Ballscrew End Machining Fixed side Example FK12 mounted STEP242 |
|
8112-6 BK-FK 12 Ballscrew End Machining Fixed side Example MBA12-C mounted STEP242 |
|
8112-7 BK-FK 12 Ballscrew End Machining Fixed side Example MBA12-D mounted STEP242 |
Price agreement
Below you will find you personal price agreements.
| ||||||||||||
BK12 Fixed Ballscrew Support (C3 quality)
€52,00
Excluding VAT
Price per piece
FK12 Fixed Ballscrew Support Units (C3 quality)
€41,00
Excluding VAT
Price per piece
