Caster Wheel 100x30mm with brake
Article number 3883
In Stock
| General conditions | ||
| Quantity 5 - > | 10,00 % on the retail price of €20,00 | €18,00 |
| Quantity 10 - > | 20,00 % on the retail price of €20,00 | €16,00 |
EAN-number 8717219487912
€20,00
Excluding VAT
Price per piece
Description
Attachments
Discount
Component features:
- Plastic Rim
- Wheel Dimensions: 100mm diameter 30mm Width
- Wheel made from Massive Rubber
- Max allowable weight: 70kg
- Outside Dimensions of plate: 105x80mm
- Drill Pattern holes in plate: 80x60mm
- Hole diameter: 8.2mm (we advise to use M8 or smaller bolts)
- This model has a brake on the wheel (if not required get 3882)
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
3883-1 Caster Wheel 100x30mm with brake STEP214 |
|
3883-2 Caster Wheel 100x30mm with brake STEP242 |
 |

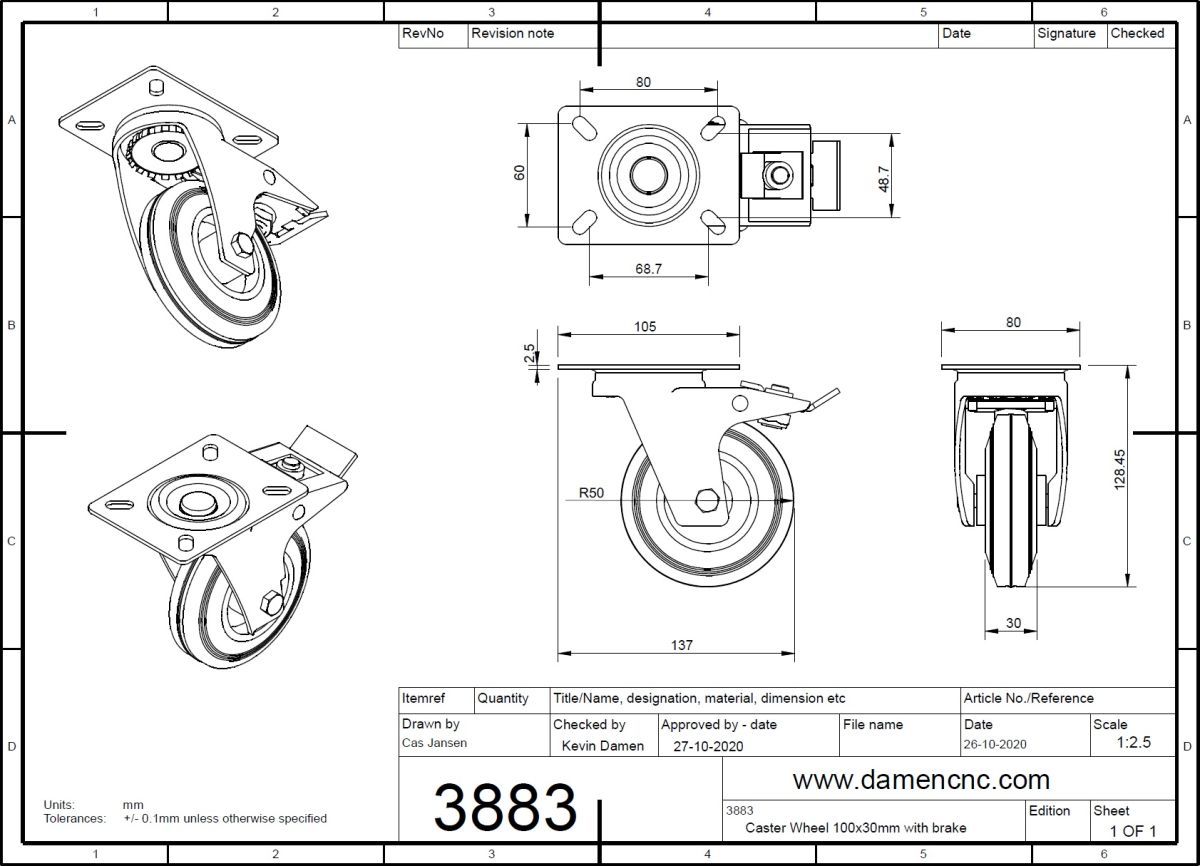

3883-3 Caster Wheel 100x30mm with brake 2D Dimensions |
