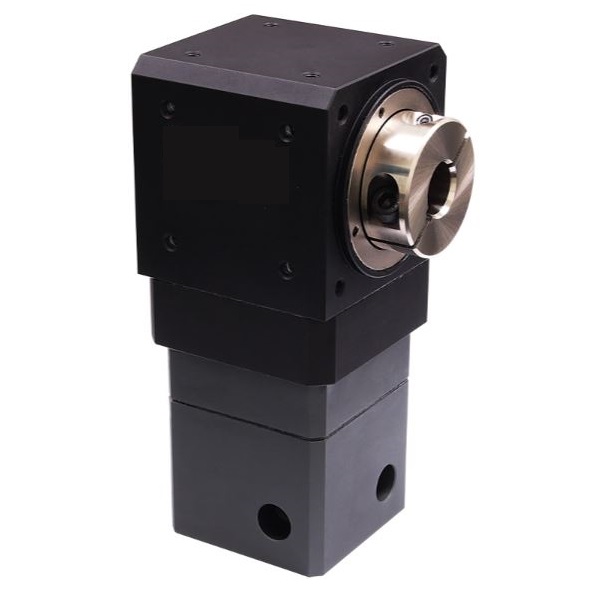

DCNC-RAG-F70 I=32 Right Angle Gearbox (60x60mm)

Article number 5928
DamenCNC
In Stock In Stock
General conditions
Quantity 3 - > 5,00 % on the retail price of €765,00 €726,75
Quantity 5 - > 10,00 % on the retail price of €765,00 €688,50
€765,00 Excluding VAT Price per piece
Add to cart
Description
Attachments
Discount
Compatible Products

Right Angle Gearbox that is produced especially for DamenCNC. We use this gearbox in our advanced Rack&Pinion Drive. The input shaft has a 14.00mm bore which makes it compatible with our 60x60mm Servo Motors and our NEMA34 Stepper Motors. Note that for NEMA34 and 80x80mm an optional flange is required.

Component eigenschappen:

  • Compatible with our 60x60mm Servo Motors (Delta or others with 14mm shaft)
  • OPTIONAL: Flange for 80x80mm Servo Motors (Delta ECMA-C20804R7) and Flange for NEMA34 Stepper Motors.
  • Output Flange is 70x70mm with 15mm bore
  • Reduction Ratio: 1:32
  • Other Reduction Ratios available on request
  • Low Backlash: < 5 Arcmin
  • Weight: 2500 grams

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

5928-1_DCNC-RAG-F70_I=32_Right_Angle_Gearbox_(60x60mm)_STEP214.stp 5928-1 DCNC-RAG-F70 I=32 Right Angle Gearbox (60x60mm) STEP214
5928-2_DCNC-RAG-F70_I=32_Right_Angle_Gearbox_(60x60mm)_STEP242.stp 5928-2 DCNC-RAG-F70 I=32 Right Angle Gearbox (60x60mm) STEP242
5928-3_DCNC-RAG-F70_I=32_Right_Angle_Gearbox_(60x60mm)_2D_Dimensions.pdf 5928-3 DCNC-RAG-F70 I=32 Right Angle Gearbox (60x60mm) 2D Dimensions
