DCNC Router Z-axis Ballscrew R=450mm DIY
Article number 4230
DamenCNC
€1.540,00
Excluding VAT
Price per set
Description
Attachments
Compatible Products
Originally this Linear Slide Module was designed for our CNC surfboard shaping machine. Since that time it has been redesigned with many improvements. It is using the best components, HIWIN guides, ISEL ballscrews and IFM sensors. The custom parts are CNC milled. The modules are available in KIT version, but can be assembled on request.
Component features:
- Z-axis for our DCNC Router Kit
- Can also be used as separate module in other application
- Module is DCNC Designed/Built/Tested
- Available in a KIT version (assembly on request)

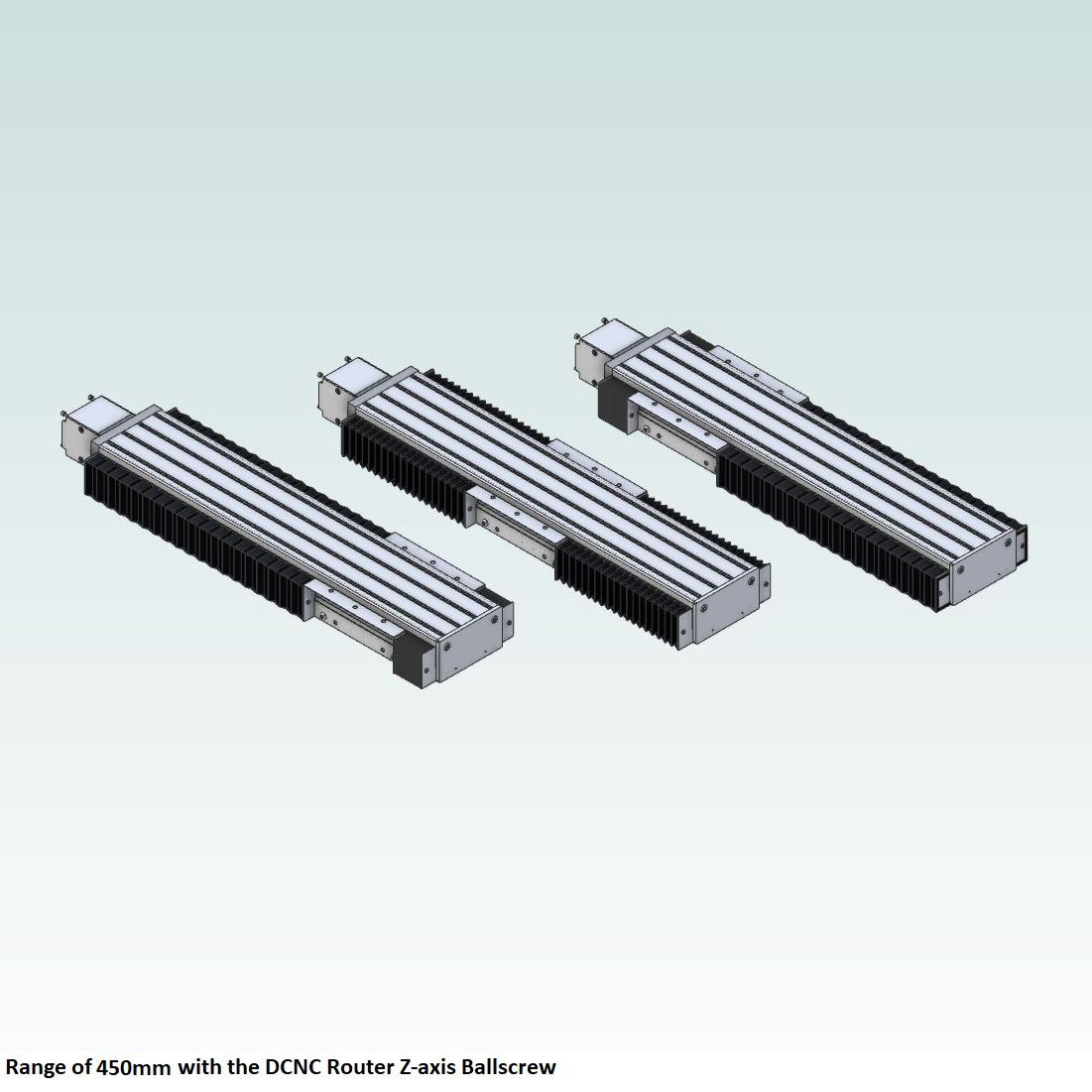

- Range = 482mm net. Without the bellows the range will be 604mm
- Alu profile length = 855mm. Note that the steppermotor will add length
- HIWIN guideways HG15R with 4 carriages
- ISEL ballscrew (standard 16x4mm, 16x5mm on request)
- IFM inductive proximity switch (PNP)
- CNC milled aluminum parts
- High quality PVC and nylon Dust Bellow to keep dust and chips out
- NEMA34 motor mount, shaft diameter 14mm (other sizes on request)
- NEMA34 stepper motor not included!
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
4230-1 DCNC Router Z-axis Ballscrew R=450mm DIY STEP214 |
|
4230-2 DCNC Router Z-axis Ballscrew R=450mm DIY STEP242 |
 |
4230-3 DCNC Router Z-axis Ballscrew R=450mm DIY - With Bellow 2D Dimensions |
|
4230-4 DCNC Router Z-axis Ballscrew R=450mm DIY - Without Bellow 2D Dimensions |
|
4230-5 DCNC Router Z-axis Ballscrew R=450mm DIY - Difference 2D Dimensions |
|
DCNC Router Z-axis Ballscrew Assembly Manual |
