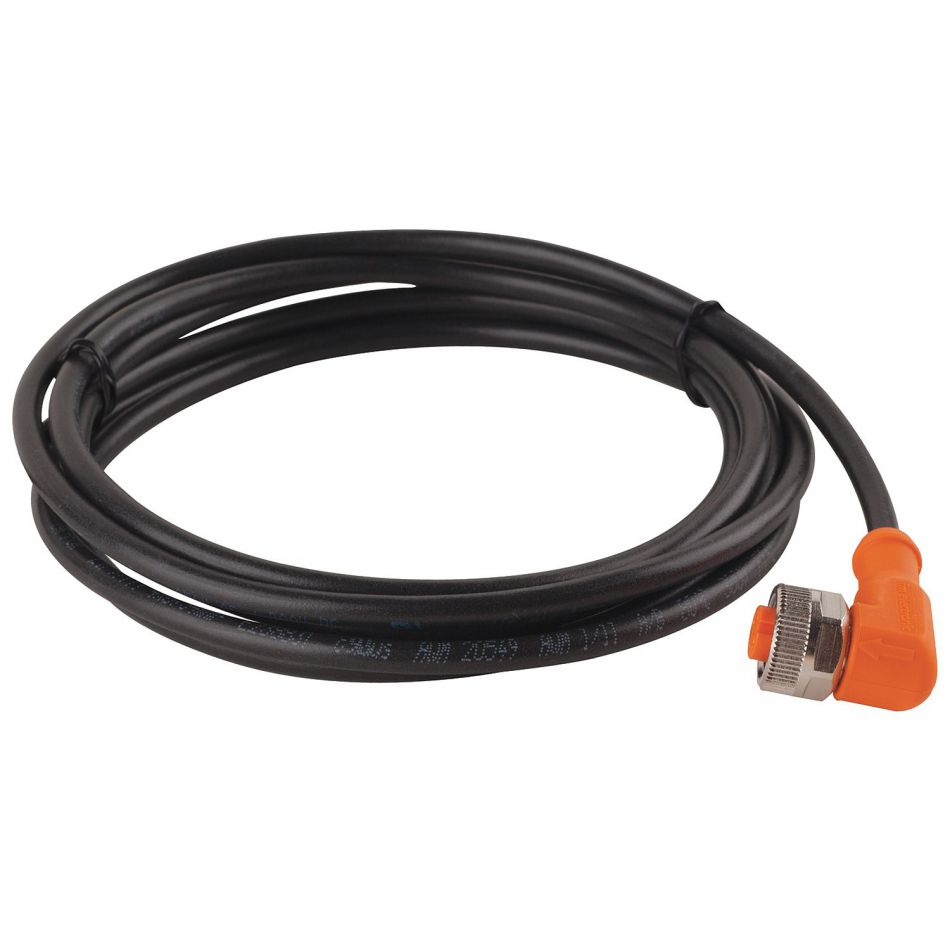

EVC006 Angled Female M12 4-pole (10m)

Sensor cable we often use with M12 IFM sensors. The cable is made from PUR rubber, and is highly flexible. It is designed to be used in cable chains. Standard there is a 5 year warranty on this part.

Component features:

• Length: 10 meters
• Number of poles: 4
• IFM made in Germany
• 5 year warranty
• PUR Cable black 4x0.34mm² 4.9mm diameter
• Several standard lengths available from stock
• Custom lengths on request, (leadtime will be longer)
• IP 65 / IP 67 / IP 68 / IP 69K
• Bending radius for flexible applications: min. 10 x cable diameter
• Travel speed max. 3.3m/s for a horizontal travel length of 5m and max acceleration of  5 m/s²
• Bending cycles: > 5 million
• Torsional Strain: +/-180 degrees per meter
