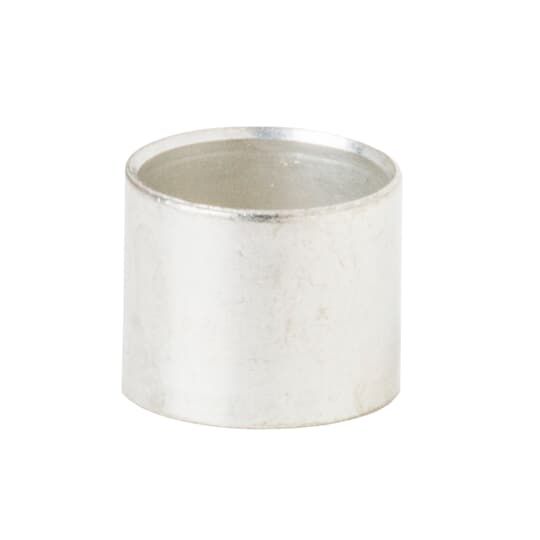

GSC5425 Shield-Kon®, Outer Ring, Ø10,8 x Ø12,06 GREY
Article number 5681
ABB
In Stock
€2,00
Excluding VAT
Price per piece
Description
Attachments
Compatible Products
Outer Sleeve Connector For Grounding Shielded And Coaxial Cables, Inner Diameter Of 10.8mm, grey/silver. Shield-Kon is a system invented by Thomas & Betts, who have since been taken over by ABB. This system allows cable shield to be connected using an inner and an outer ring. Which are crimp together with the shield in between. The inner ring is hard, the outer ring is soft. A special crimp tool is required to make the proper connection. Many different combinations can be made. Depending on what inner and outer ring are used.
Component features:
- Inner Sleeve Connector For Grounding Shielded And Coaxial Cables
- ABB Thomas & Betts part number: GSB5348
- Inner Diameter: 10.8mm
- Outer Diameter: 12.06mm
- Length: 6.6mm
- Colour: Grey/silver
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
5681-1 GSC5425 Shield-Kon®, Outer Ring, Ø10,8 x Ø12,06 GREY STEP214 |
|
5681-2 GSC5425 Shield-Kon®, Outer Ring, Ø10,8 x Ø12,06 GREY STEP242 |
 |

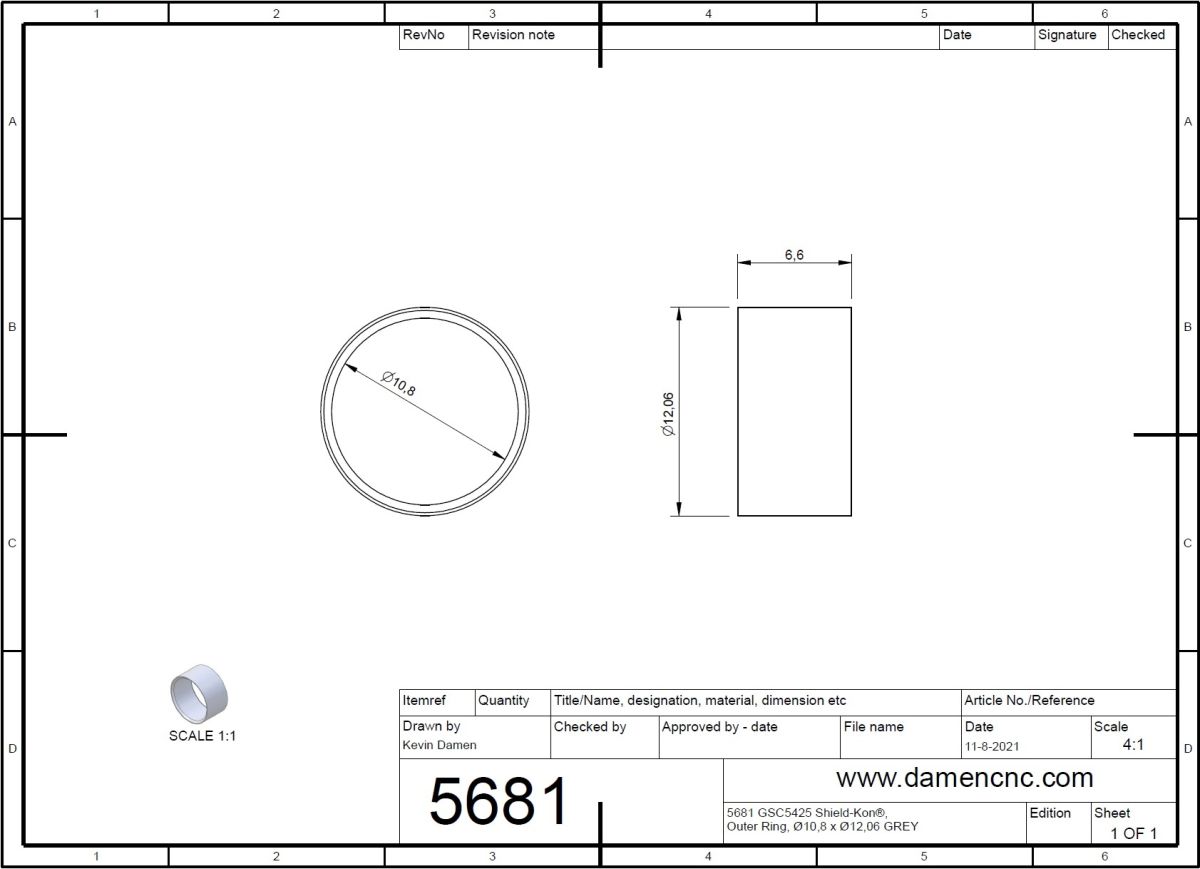

5681-3 GSC5425 Shield-Kon®, Outer Ring, Ø10,8 x Ø12,06 GREY 2D Dimensions |
|
5681-4 GSC5425 Shield-Kon®, Outer Ring, Ø10,8 x Ø12,06 GREY Datasheet |
|

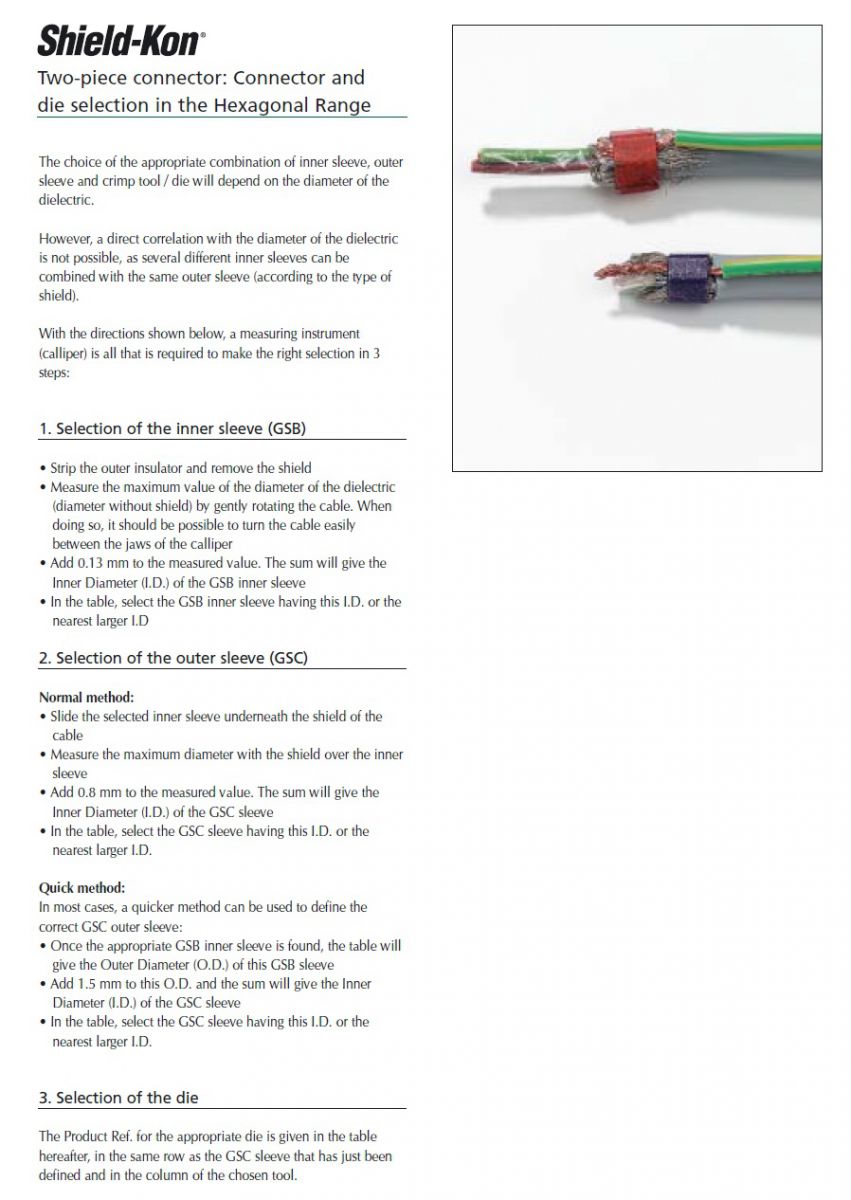

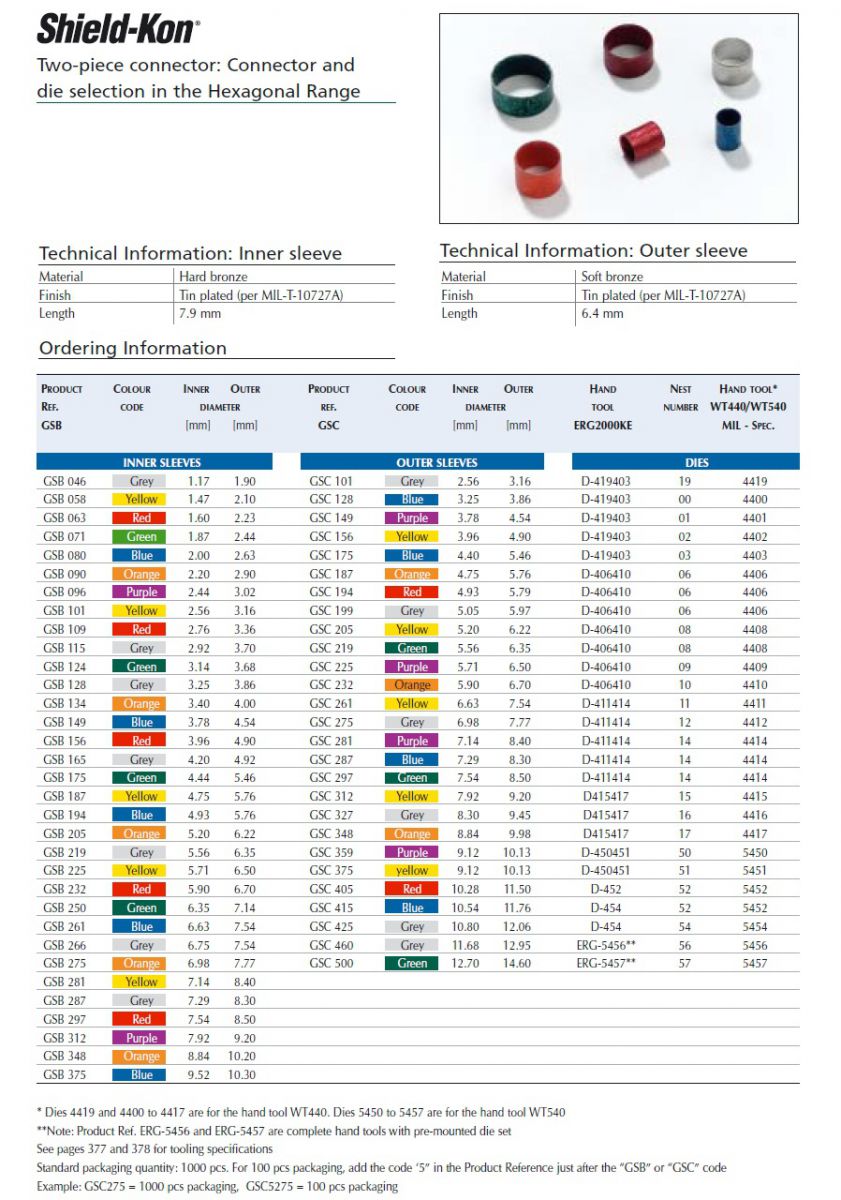

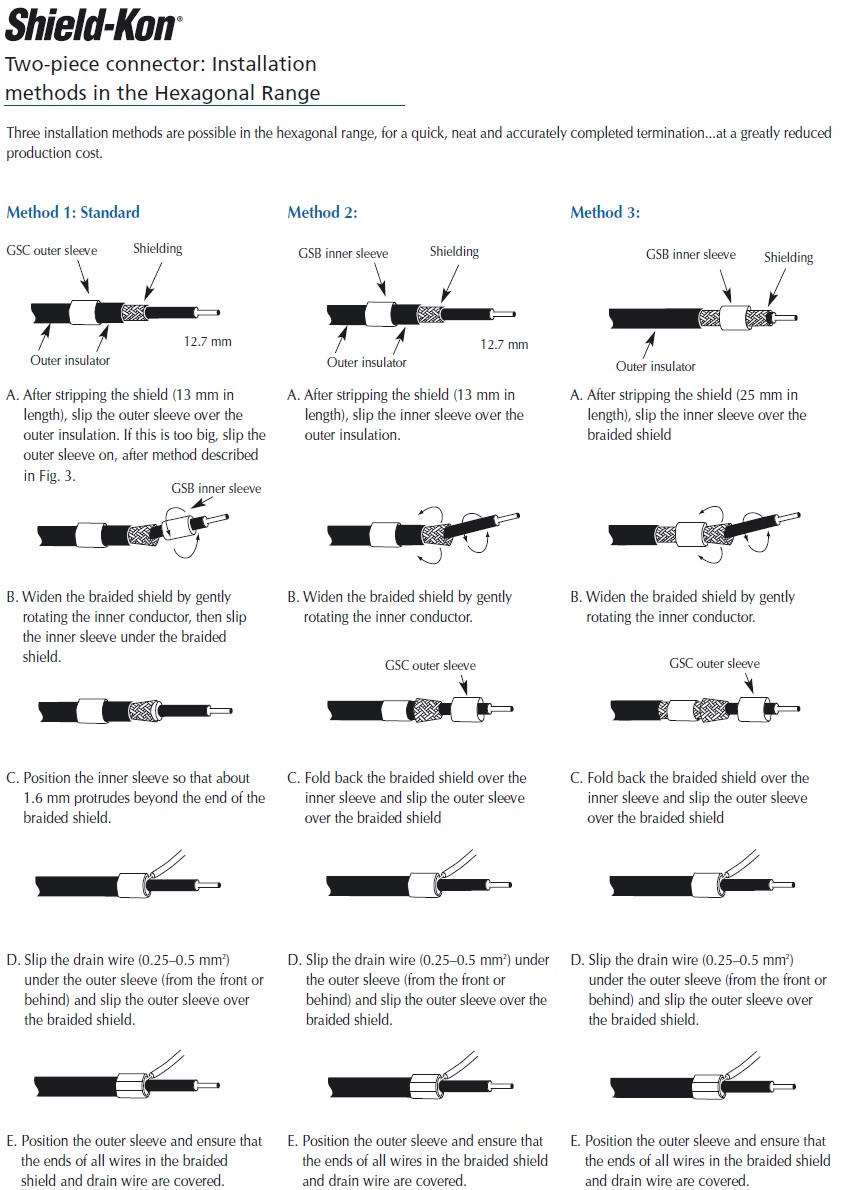

5681-5 GSC5425 Shield-Kon®, Outer Ring, Ø10,8 x Ø12,06 GREY Catalog |
