HIWIN Ballnut R16-10T3-RSI
Article number 713
HIWIN
In Stock
| General conditions | ||
| Quantity 5 - > | 5,00 % on the retail price of €177,00 | €168,15 |
| Quantity 10 - > | 10,00 % on the retail price of €177,00 | €159,30 |
| Quantity 50 - > | 15,00 % on the retail price of €177,00 | €150,45 |
| Quantity 100 - > | 20,00 % on the retail price of €177,00 | €141,60 |
€177,00
Excluding VAT
Price per piece
Description
Attachments
Discount
Compatible Products

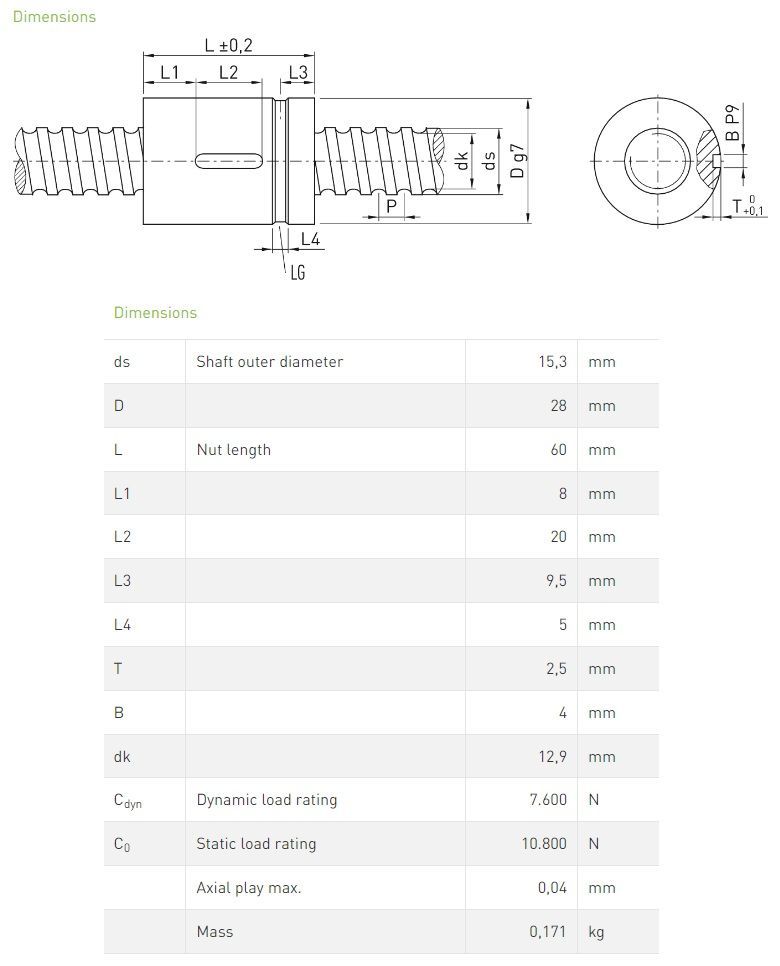

HIWIN Ballnut for 16mm diameter HIWIN ballscrew with 10mm pitch.
Component features:
- HIWIN ballnut for rolled ballscrews
- Type of nut: R16-10T3-RSI
- Cylindrical single nut
- For HIWIN 16mm diameter 10mm pitch ballscrew
- Dynamic Load Rating: 7600 (N)
- Static Load Rating: 10800 (N)
- Max. axial play: 0.04mm
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
713-1 HIWIN Ballnut R16-10T3-RSI STEP214 |
|
713-2 HIWIN Ballnut R16-10T3-RSI STEP242 |
 |
HIWIN Ballscrews and Accessories Catalog 2024 BS-08-5-EN-1908-K |
|
HIWIN Ballscrew Assembly and Maintenance Instructions 2024 BS-04-1-EN-1812-MA |
