HIWIN Carriage WEH17CA-Z0-H
Article number 6914
HIWIN
In Stock
| General conditions | ||
| Quantity 5 - > | 5,00 % on the retail price of €79,00 | €75,05 |
| Quantity 10 - > | 10,00 % on the retail price of €79,00 | €71,10 |
| Quantity 50 - > | 15,00 % on the retail price of €79,00 | €67,15 |
| Quantity 100 - > | 20,00 % on the retail price of €79,00 | €63,20 |
€79,00
Excluding VAT
Price per piece
Description
Attachments
Discount
Compatible Products

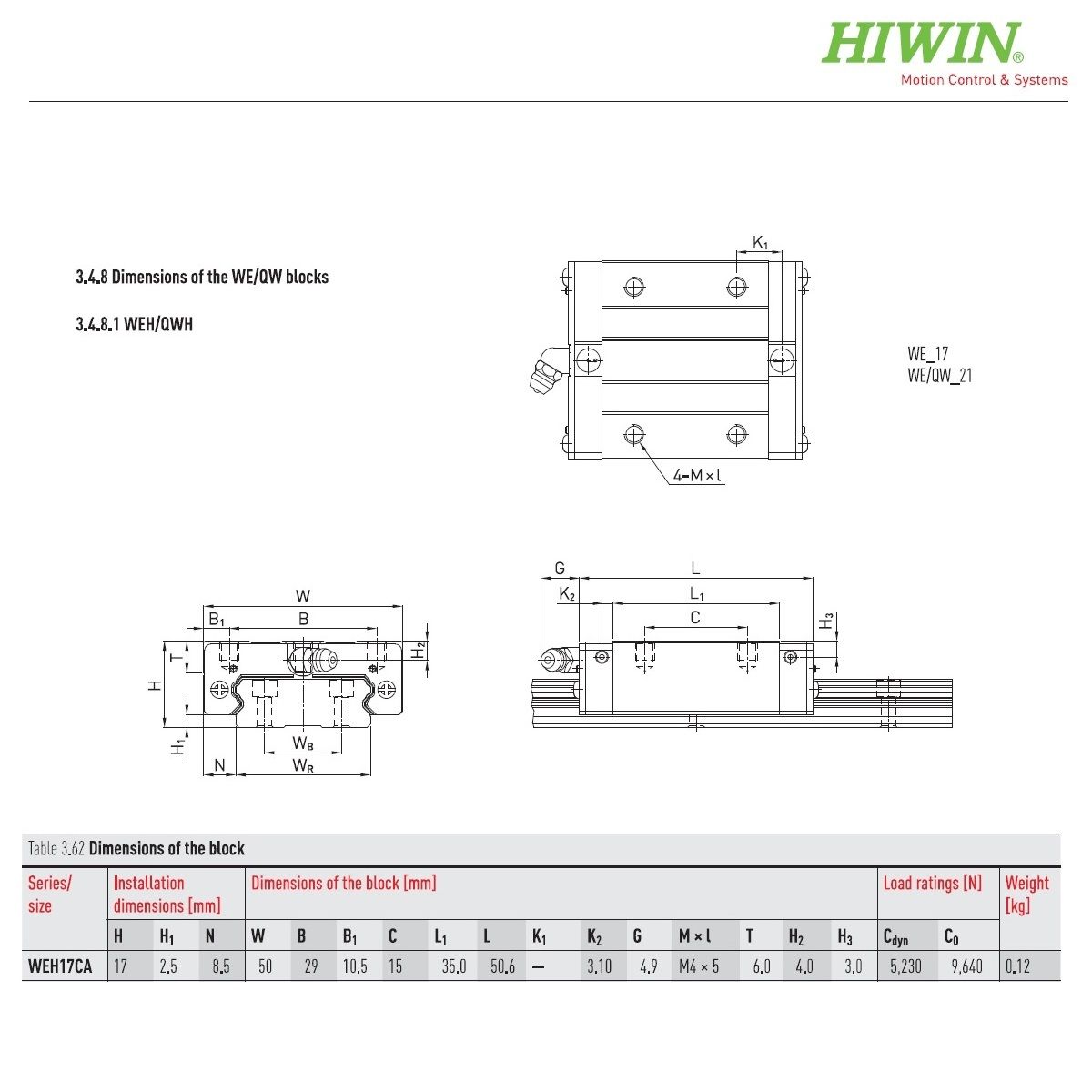

These carriages fit on the HIWIN WER17-R and WER17-T Profile rails. This specific type of carriage is a narrower model, which is 50mm wide. HIWIN also has a wider model which is the WEW type, see our part number 4747.
Component features:
- High Square (WEH) type model
- Normal Load Model (CC)
- By default we have Z0 (preload), perfect for CNC routers
- High precision class (H)
- 4 x m4 Threaded hole in carriage allows mounting from above
- NOTE: Mounting from below is not possible (use the WEW version if that is a requirement(4747))
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
6914-1 HIWIN Carriage WEH17CAZ0H STEP214 |
|
6914-2 HIWIN Carriage WEH17CAZ0H STEP242 |
 |
6914-3 HIWIN WE Wide Series Rails and Carriages |
