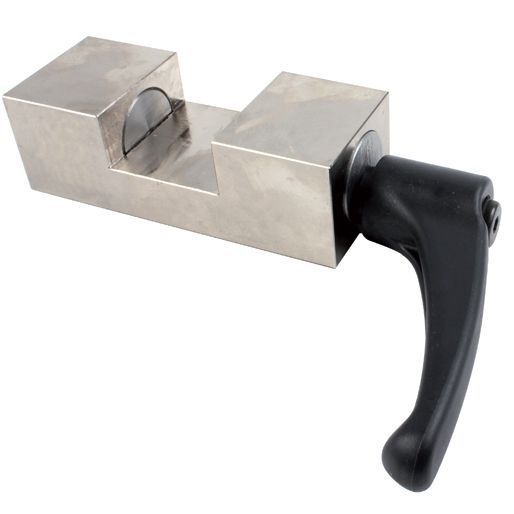

HK2701B - Wide - Manual Clamping Element
Article number 6912
ZIMMER
In Stock
| General conditions | ||
| Quantity 5 - > | 5,00 % on the retail price of €108,21 | €102,80 |
| Quantity 10 - > | 10,00 % on the retail price of €108,21 | €97,39 |
| Quantity 50 - > | 15,00 % on the retail price of €108,21 | €91,98 |
€108,21
Excluding VAT
Price per piece
Description
Attachments
Discount

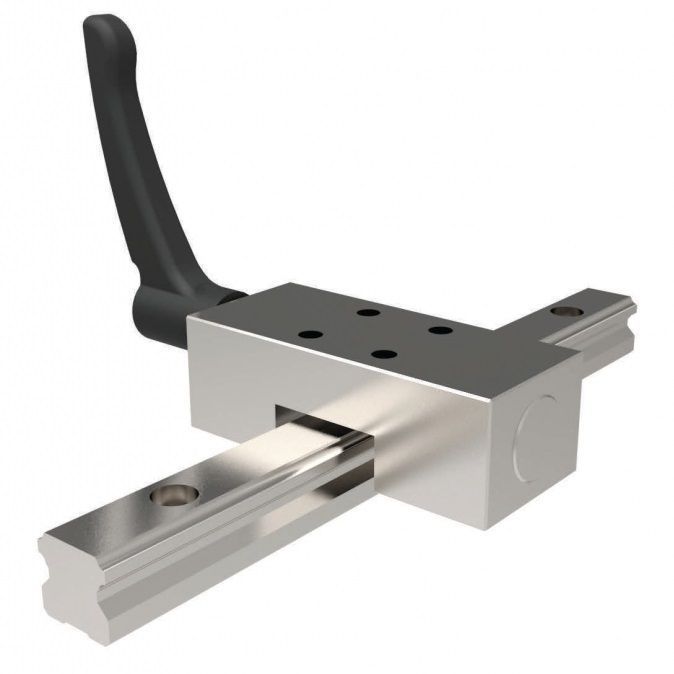

For use with HIWIN WER27R and HIWIN WER27T wide linear guideways and other manufacturers' rails to lock carriages into a fixed position. An economical way to manually stop the sliding motion of linear guides. HK manual clamping units are intended for STATIC holding only. Using them for dynamic braking is not recommended and could damage the linear rail.
Component features:
- High Quality Made in Germany part (ZIMMER GROUP)
- Very simple yet robust design achieves highly effective manual clamping.
- HK manual clamping units are intended for STATIC holding only. Using them for dynamic braking is not recommended and could damage the linear rail.
- Tool-free opening and closing (bi-stable)
- By turning the clamping lever

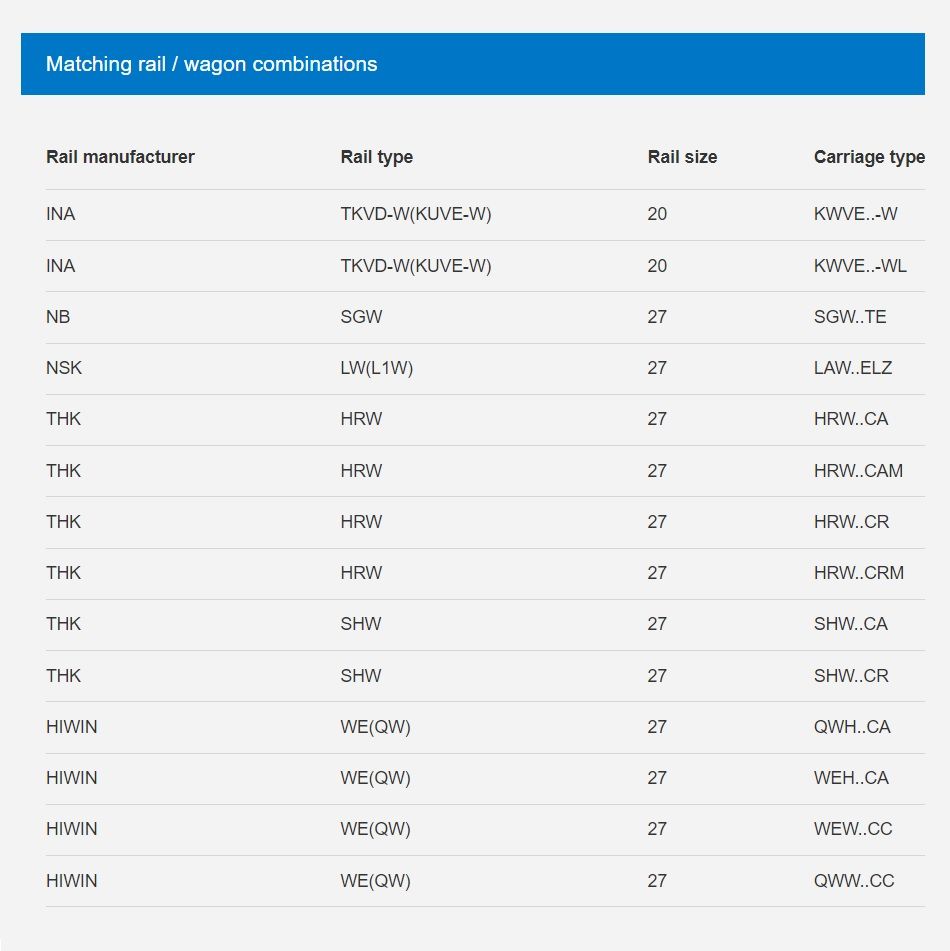

- Compatible with HIWIN WER27R and HIWIN WER27T wide linear guideways (Fits other brand of wide linear guides as well)
- Maintenance free
- Up to 50,000 static clamping cycles
- Adapter plate is required in some applications to elevate the height of the mechanism to equal that of the bearing/guide.
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
6912-1 HK2701B - Wide - Manual Clamping Element - STEP214 |
|
6912-2 HK2701B - Wide - Manual Clamping Element - STEP242 |
 |
6912-3 HK2701B - Wide - Manual Clamping Element 2D Dimensions |
|
6912-4 HK2701B - Wide - Manual Clamping Element - INSTALLATION AND OPERATING INSTRUCTION |
