I/O Push In Terminal for B3 Drives ACS3-IFSC4444 (for B3-L)

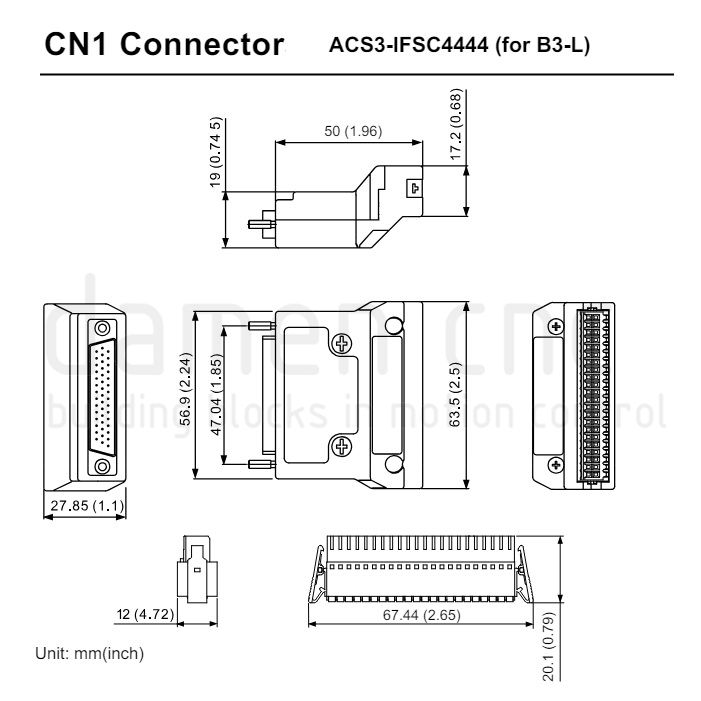

Instead of soldering to the 44 pin CN1 connector on the Delta B3 Servo driver. This module has easy push in terminals making the wiring much faster. All 44 pins are accessible, this information is relevant because the Delta A2 system has a similar accessory, where not all pins are available. The connectors are all labelled, and made such that it is impossible to invert connections. It's really foolproof. The ony complaints we get, are regarding the height. The unit extends about 62mm up from the driver, and the cables come straight out of it, so you need a few more cms of clearence. This means you need to check if your control box is deep enough to mount this option. And another small point is that the cross section of the cables can be a maximum of 0.25mm2 (24AWG).

Component features:

• Quick Connector for the CN1 44 pin interface on Delta B3-L servo drivers
• Accessory for the Delta B3-L system
• Easy mounting with push in terminals
• Delta part number: ACS3-IFSC4444 (for B3-L)
• NOTE: Check the height of your control box (this unit ads at least 62mm of extra height)
• NOTE: Check the AWG(mm2) of your cables, this works with 0.25mm2 and smaller
• NOTE: Only suitable for B3-L step/dir models, does not fit B3-E B3-M etc...
