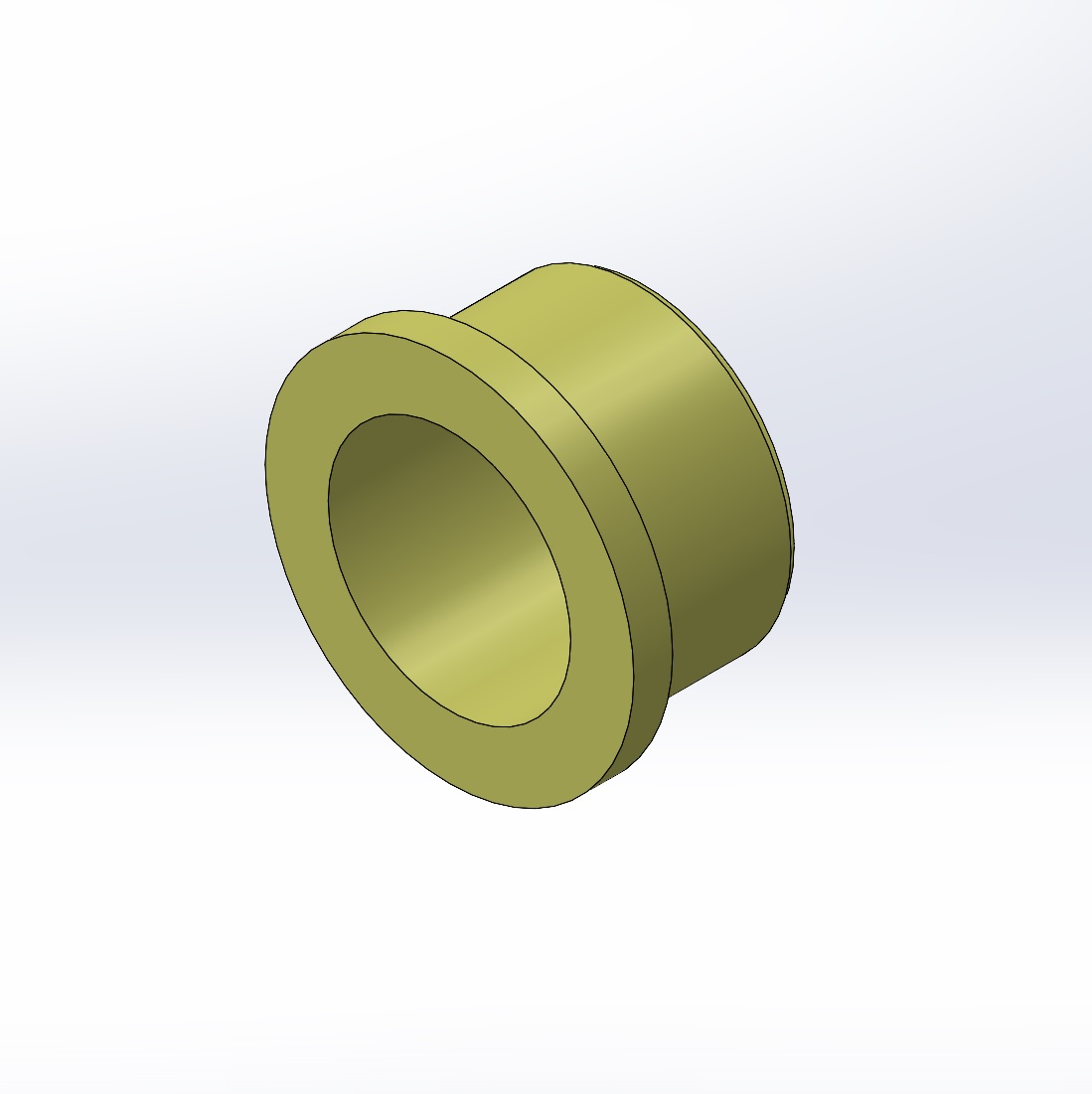

Iglider 25mm Sliding Bearing, JFM-2532-20

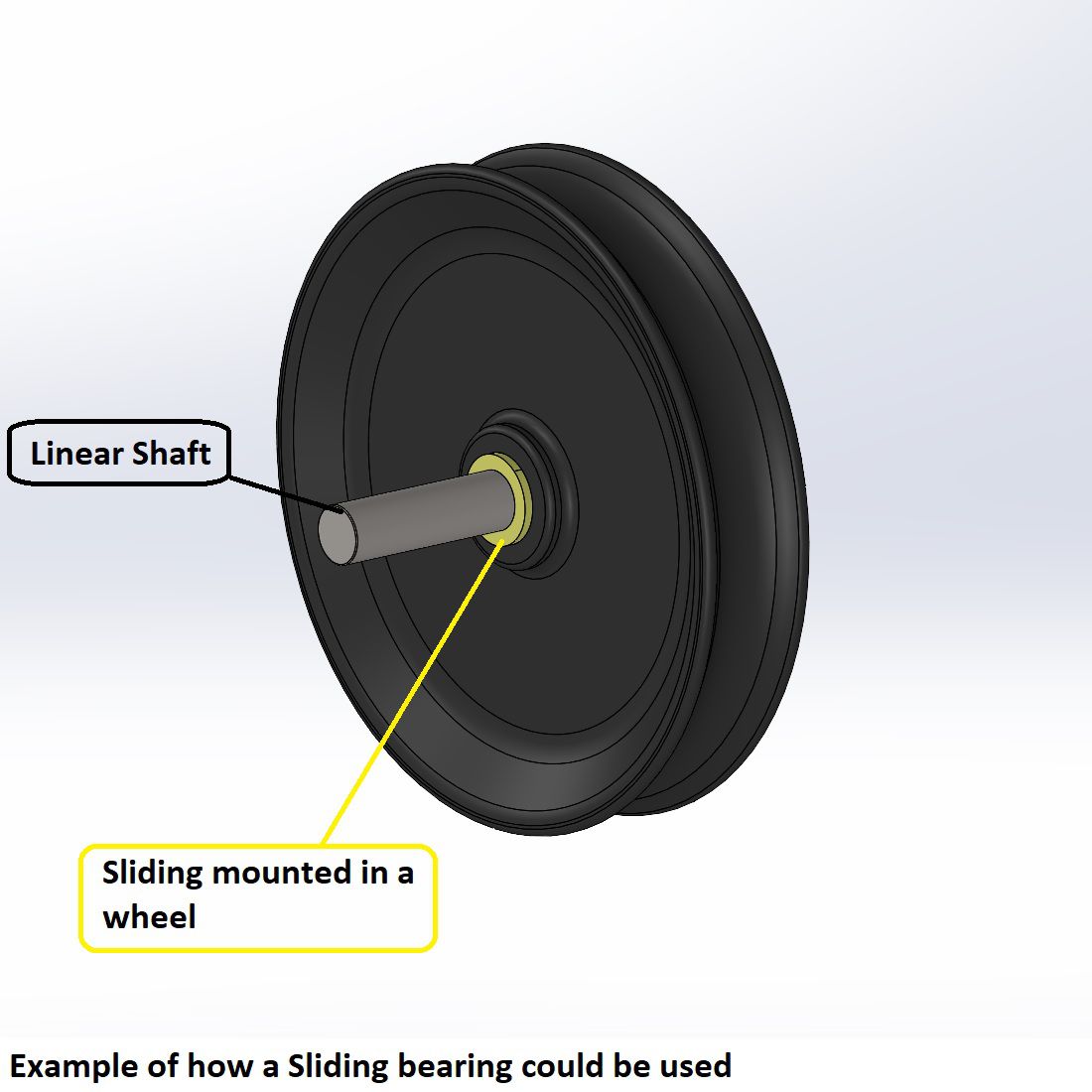

The iglidur® J is sliding bearing with a low coefficient of friction. This makes it suitable for applications where a product has to slide over a steel shaft, which is in a dirty/dusty environment. We do not advise to use it in CNC, as its quite difficult to adjust so that there is no play. But it is still very usefull in other systems, where backlash/play are less of a problem.

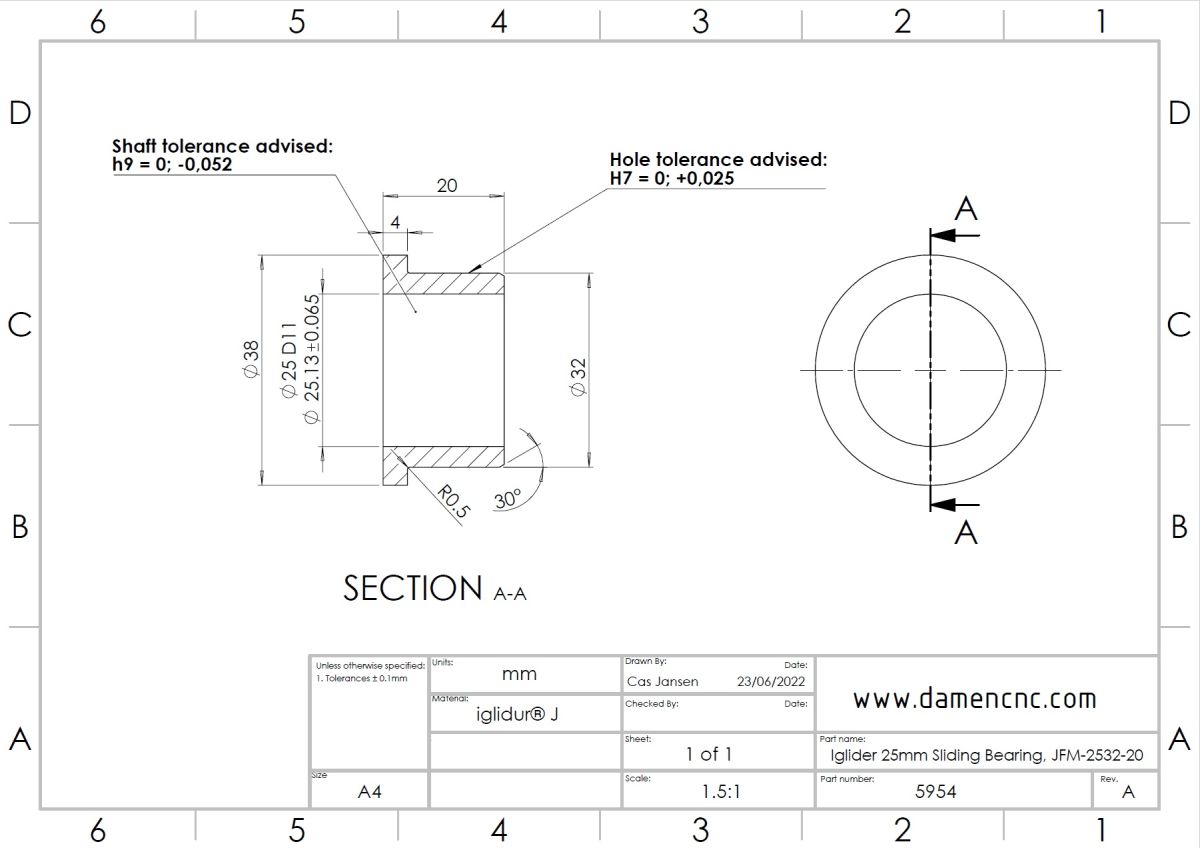

The iglidur® J plain bearing must be mounted in a hole of 32mm, with a tolerance of H7 (0; +0.025mm). For optimal use, use a shaft with tolerance h9 (0; -0.052mm). The Linear Motion Shaft Precision are compatible with the iglidur® J sliding bearing.

• Compatible with Linear Motion Shaft Precision
• Made of: iglidur® J
• Shaft diameter: 25mm h9
• Mounting hole diameter: 32mm H7
• Max temperature: +90 °C/ -50 °C
• Max linear speed: 8.0 m/s
