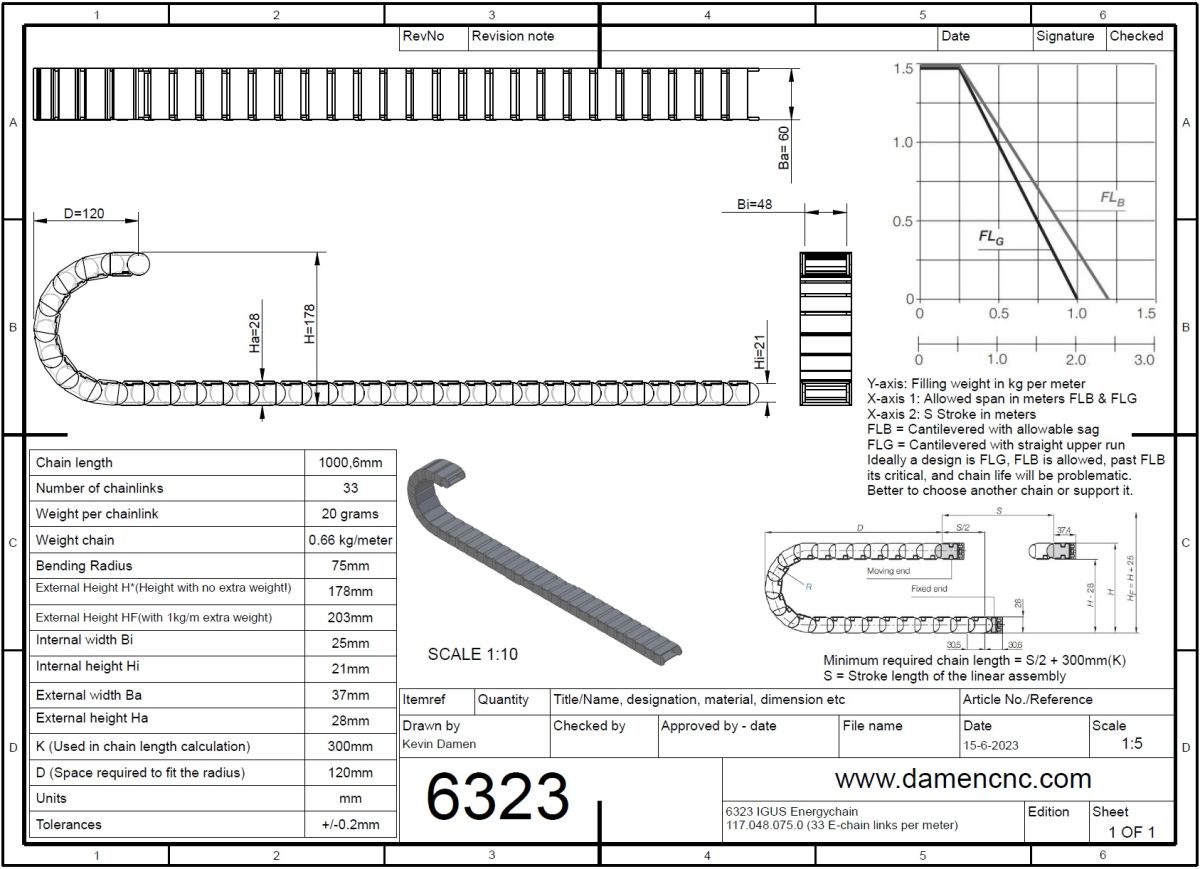

IGUS Energychain 117.048.075.0 (33 E-chain links per meter)

High quality energy chain of the well-known IGUS brand. Cables are protected against chips and dirt, since this e-chain is closed from all sides. The energy chain can be opened along the inner radius, making it easy to install cables later.

Type R100 Series R117 is the smallest energy chain that we can offer from stock. The inner size is 21mm high, and depending on the chosen model 25mm or 48mm wide. The model offered here has a width of 48mm. Both models have bending radius of 75mm.

Component features:

• IGUS quality product, made in Germany
• IGUS item number: 117.048.075.0
• Enclosed energy chain against chips
• Snap-open on both sides in the inner radius
• Bending radius: 75mm
• Inner dimensions: 21mm high and 48mm wide
• Outer dimensions: 28mm high and 60mm wide
• To be ordered in segments of 1 meter (33 E-chain links, 1007mm)
