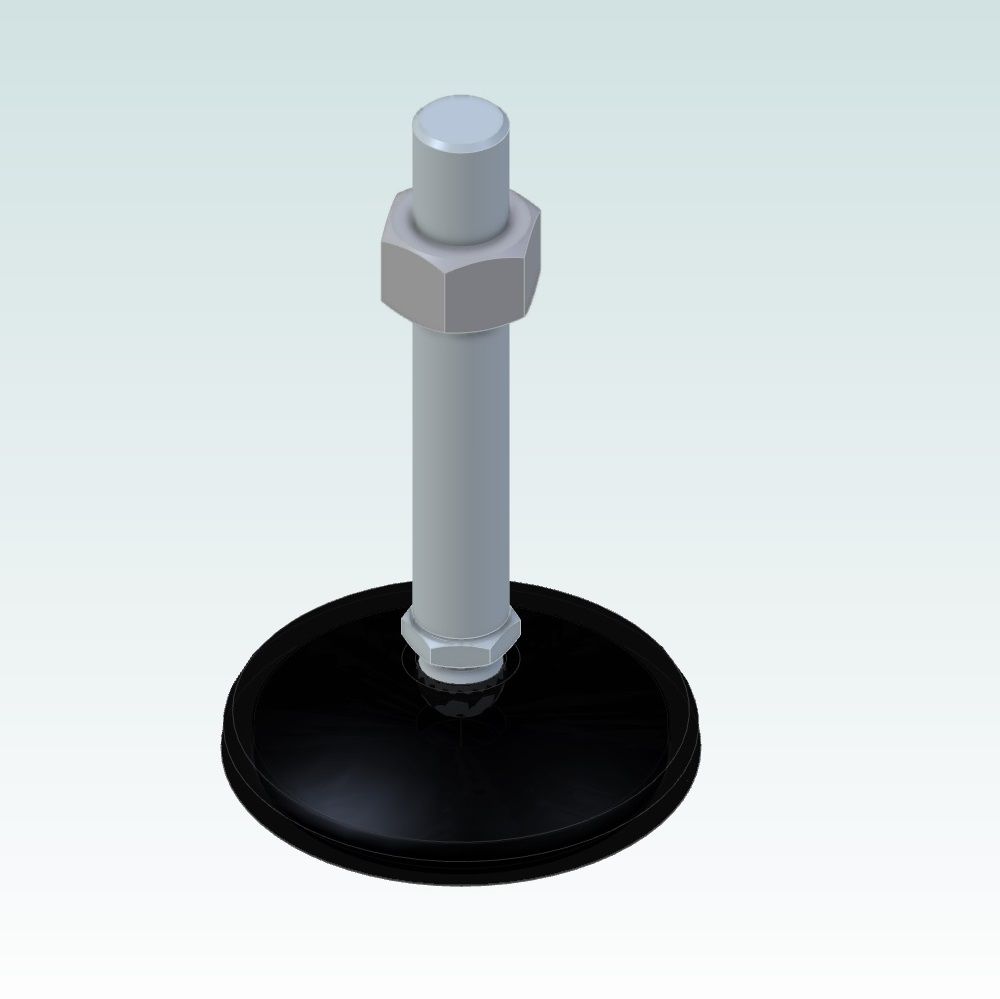

Machine Foot Ø79mm M16x100
Article number 614
In Stock
| General conditions | ||
| Quantity 5 - > | 10,00 % on the retail price of €14,99 | €13,49 |
| Quantity 10 - > | 20,00 % on the retail price of €14,99 | €11,99 |
€14,99
Excluding VAT
Price per piece
Description
Attachments
Discount
Compatible Products
Leveling feet are often used on machines. This is a very sturdy M16 thread.
Component features:
- A swiveling leveling foot for strong positioning on uneven floors
- Material Die-cast zinc
- Surface Black Powder Coated
- Including antislipmat
- 1450kg Max. Load [kg]
- Swiveling range ±20°
- Thread made from Zinc plated steel (different thread sizes available)
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
614-1 Machine Foot Ø79mm M16x100 STEP214 |
|
614-2 Machine Foot Ø79mm M16x100 STEP242 |
 |

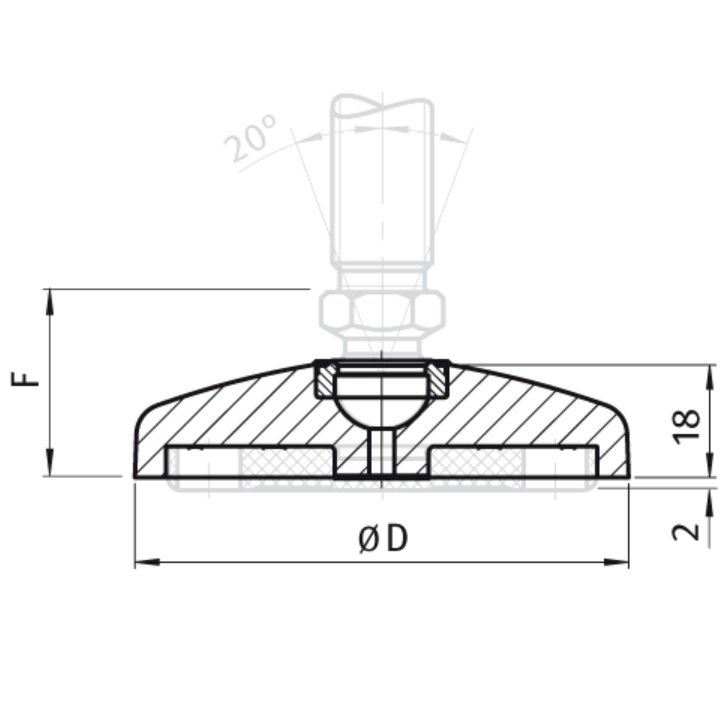

614-3 Machine Foot Ø79mm M16x100 2D Dimensions |
