Mounting Template for Helical Rack Module 2 Q6 (High Precision) 24x24x110mm

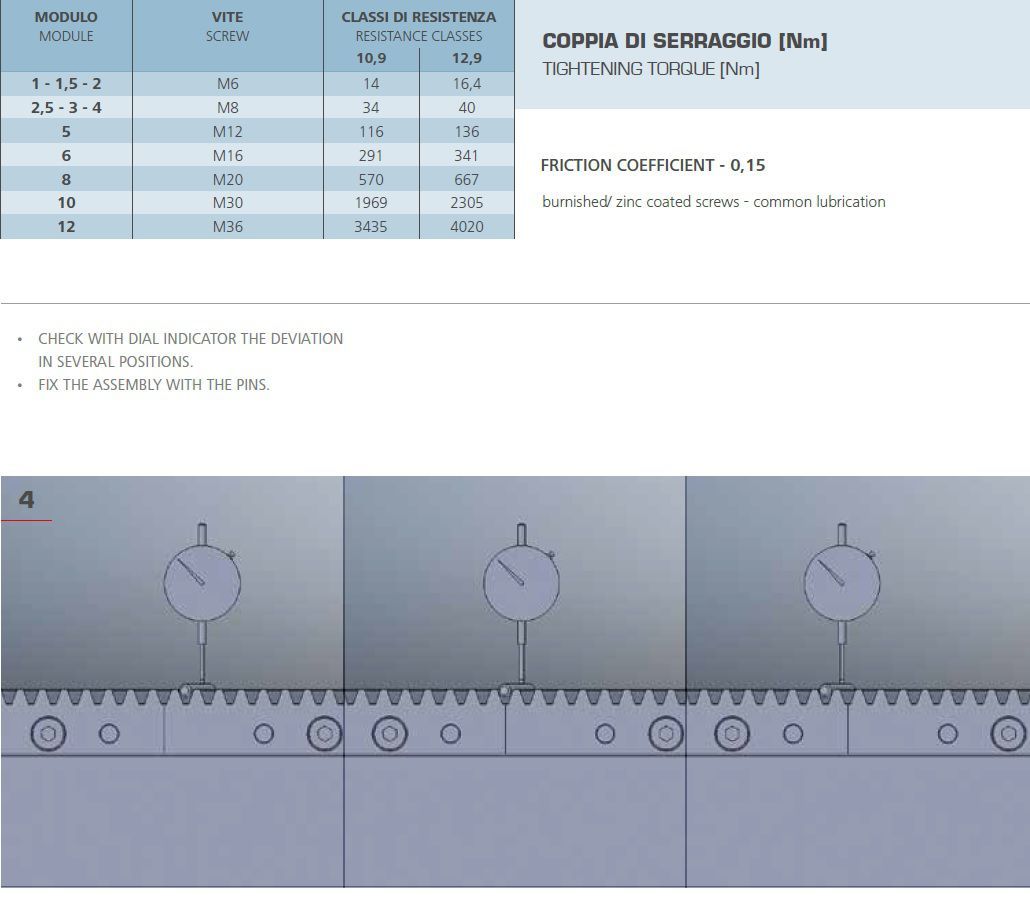

When mounting helical racks properly, a mounting template is always required for alignment between two rack segments. In a straight rack it's easy to simply use a rest piece of rack upside down inside the teeth of the mounted racks. For a helical system that trick does not work. Because the mounting template needs to have the angle of the teeth in the opposite direction as that of the racks themselves. So basicly two right hand racks, require a rest piece of a left hand rack, to be able to align them. What we offer here is really the official Gambini tool you require for properly mounting Right-hand racks, in module 2, the grinding direction of the teeth on the template is for that reason left hand. If you scroll through the images, you can see some images of the official mounting procedure that you need to follow. This information can also be found in the Gambini catalogs.

Technical Specifications:

• Type of rack: Helical mounting template for Right-hand rack Module 2
• Module: 2
• Dimensions: 24x24x110mm
• Weight: 450g
• Quality: 6
• Material: C45
• Helical tooth system: 19° 31' 42" Right-hand
• Heat treatment: induction hardened teeth 56-60 HRC
• Surface Finish: ground (all sides)
• Finish: Burnished
• Gambini part number: 1MR16L020011
