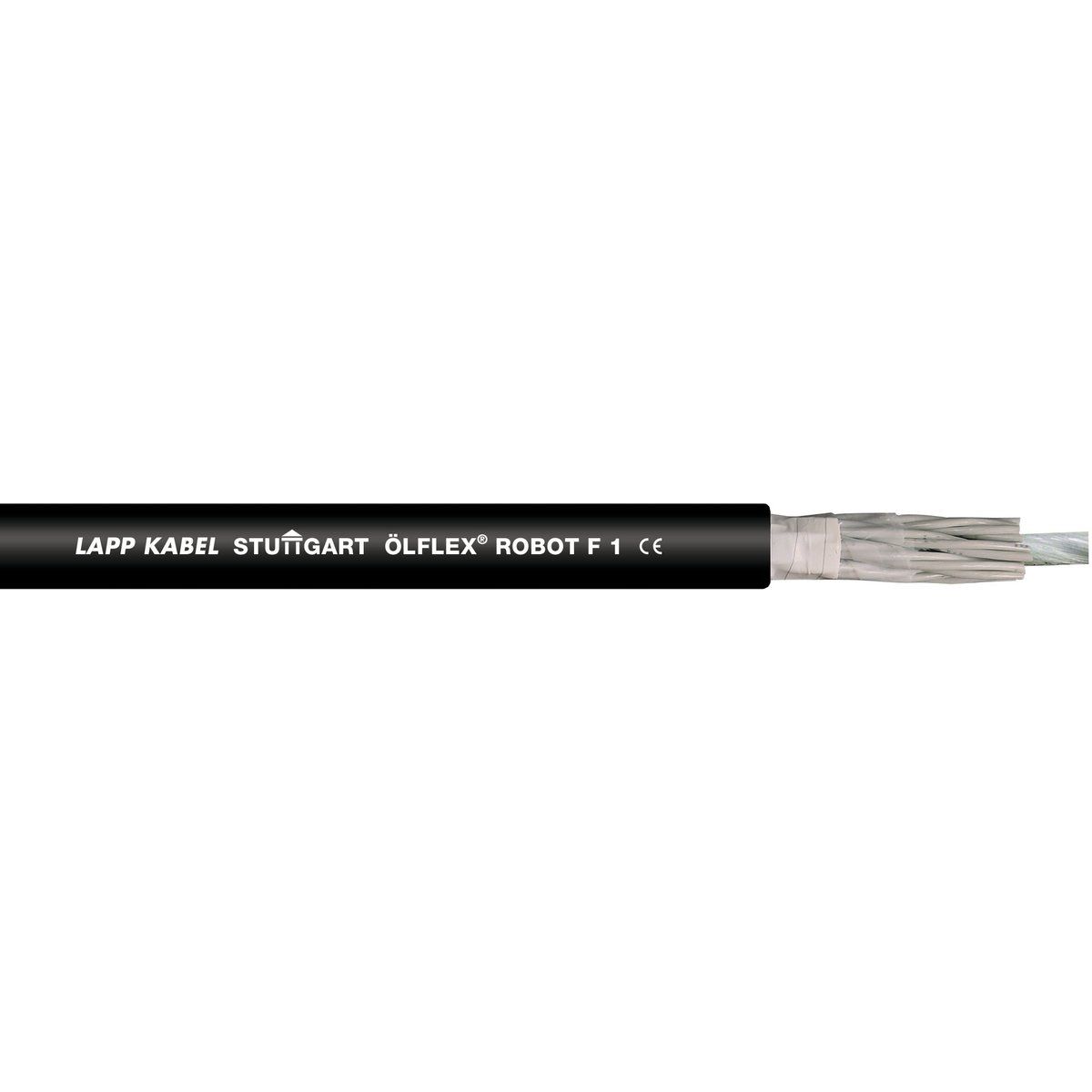

TPE-PUR Shielded Robot Cable 18x0.50mm² (17+PE)

Very high-quality shielded, wear- and oil-resistant PUR robot cable for highly dynamic bending and torsion movements. We often use this cable for QTC and ATC milling motors in robot milling applications. The cable has 18 0.5mm² cores that are usually used for inputs and outputs. We usually use these with 24VDC signals. However, the nominal voltage is 600 V AC, so it is no problem to also control other things with it.

Component features:

• Often used for QTC and ATC milling motors (TeknoMotor) in robot milling applications
• Applicable in energy chains and hose packages; This cable can be subjected to torsion and bending simultaneously
• Applicable over a wide temperature range in harsh climatic environments
• Resistant to harsh mechanical conditions; wear-resistant and notch-resistant
• Shielded against electromagnetic interference effects (EMC)
• UL/CSA AWM and VDE certification
• UL listed under E213974
• CE & UKCA
• Special core cabling allows simultaneous bending and torsion (torsion angle up to ± 180°/m)
• Durable product thanks to wear-resistant, nick and cut-resistant PUR outer sheath material
• Very weather resistant with wide temperature range
• Proven cable, successfully tested for 10 million torsion cycles
• Longer maintenance cycles at very high axial torsion angles save costs and increase machine efficiency
• UL/CSA technical data certification allows product use in the North American environment
• Product with multiple certification enables universal application, reduces the diversity of parts and thus ensures savings in logistics
• Cable layout enables flexible, permanent motion application with torsional loading in industrial robots and handling devices
• Cable layout enables highly flexible, permanently moving application in moving machine parts and in the energy chain, with horizontal travel distances of up to 10 m
• Can be used in dry and wet environments and especially in heavy and oily environments
• PUR outer sheath is resistant to high mechanical loads
• The PUR outer sheath is insensitive to mineral oil-based lubricants and has multiple chemical resistances
• Suitable for outdoor use
• Flexible interior possible up to -40 °C.
