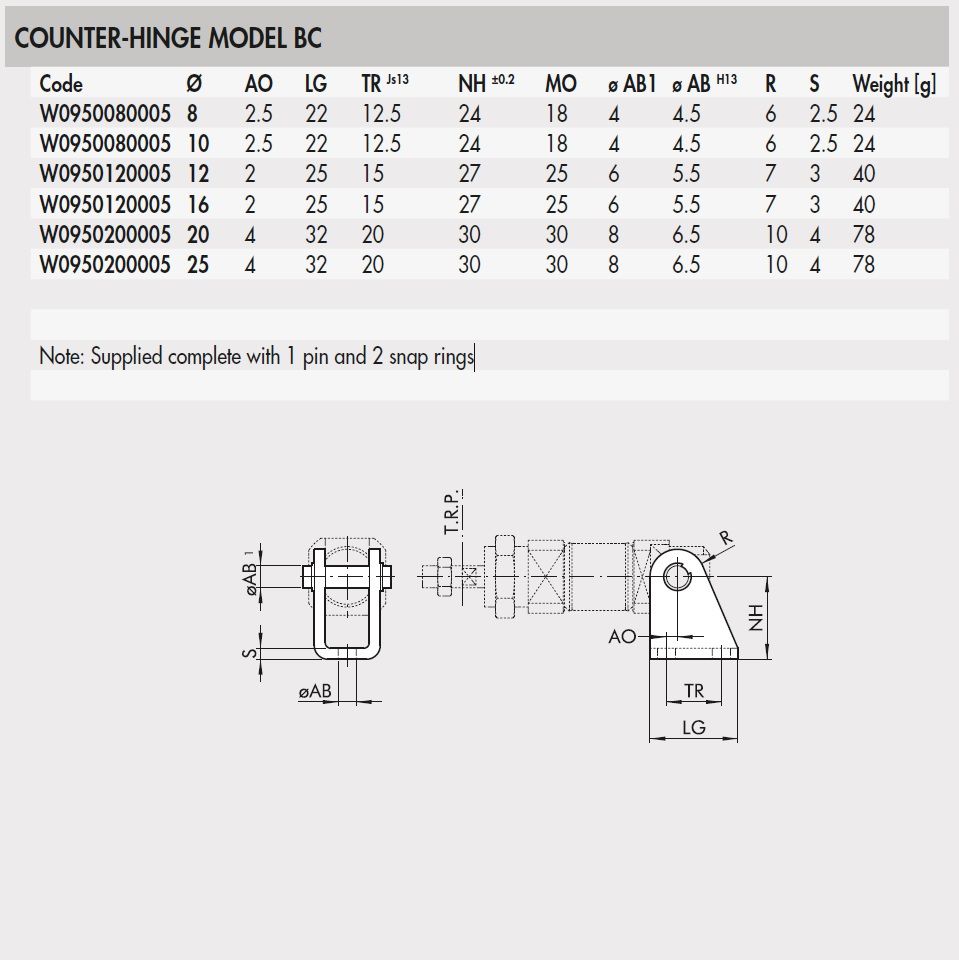

W0950080005 COUNTER-HINGE - MODEL BC for 8&10Ø BORE ISO6432
Article number 5557
Metalwork
In Stock
| General conditions | ||
| Quantity 3 - > | 5,00 % on the retail price of €4,66 | €4,43 |
| Quantity 5 - > | 10,00 % on the retail price of €4,66 | €4,19 |
| Quantity 10 - > | 20,00 % on the retail price of €4,66 | €3,73 |
€4,66
Excluding VAT
Price per piece
Description
Attachments
Discount

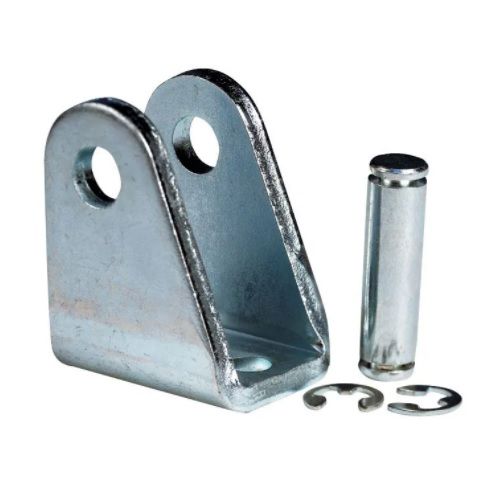

Rear hinge MODEL BC with pin, for pneumatic cylinders ISO 6432 with a bore of 8mm and 10mm. Also suitable for other products.
Component features:
- Pin diameter: 4mm
- Accessory for Ø8mm ISO 6432 pneumatic cylinders
- Accessory for Ø10mm ISO 6432 pneumatic cylinders
- Material: Galvanized steel
- Surface treatment: galvanized
- Note: Supplied complete with 1 pin and 2 snap rings
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
5557-1 W0950080005 COUNTER-HINGE - MODEL BC for 8&10Ø BORE ISO6432 STEP214 |
|
5557-2 W0950080005 COUNTER-HINGE - MODEL BC for 8&10Ø BORE ISO6432 STEP242 |
