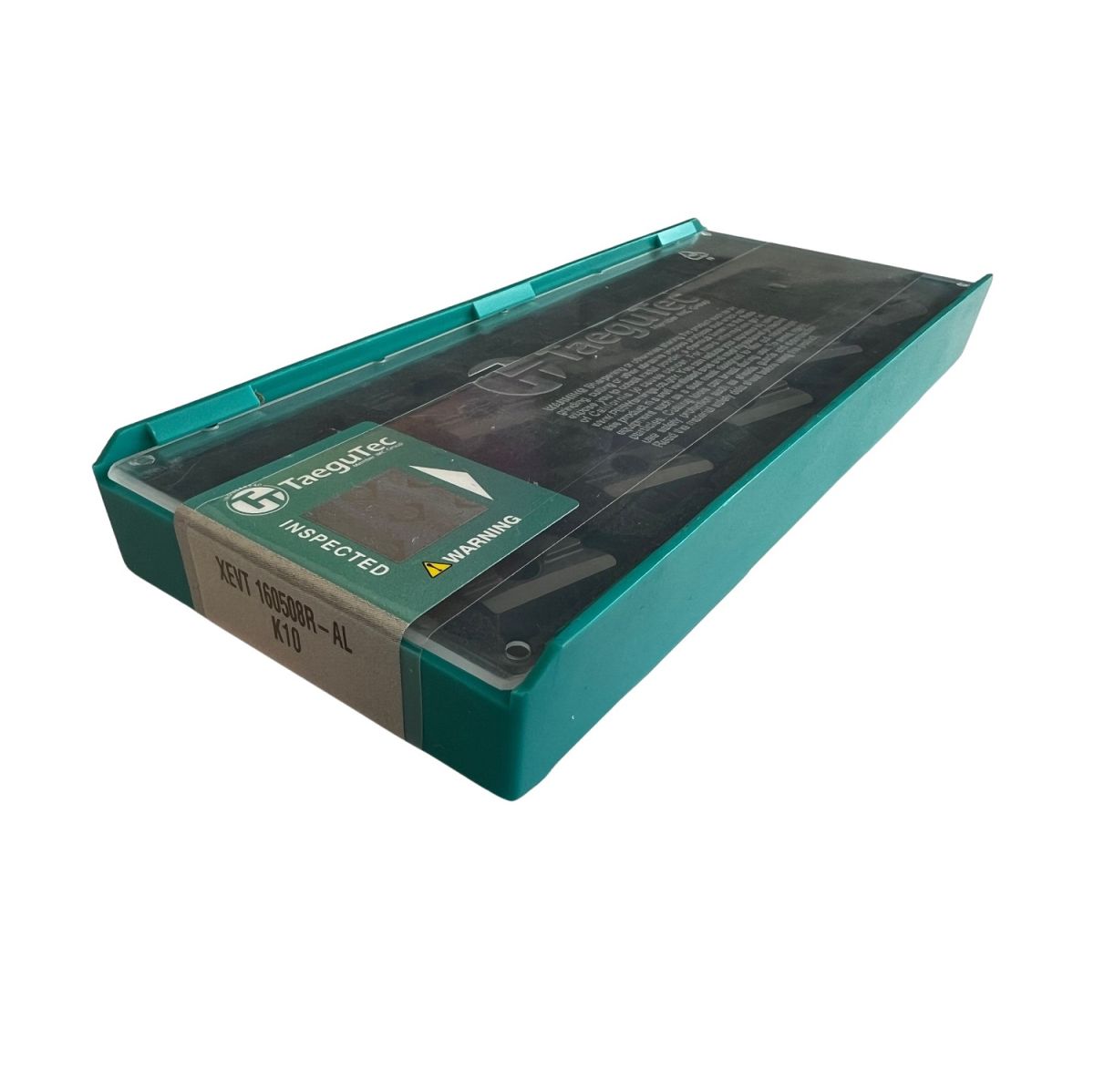

XEVT 160508R-AL K10 Sharp ground & polished inserts (ALU & non-ferrous materials)

Inserts for the 90° end mills of the TaeguTec CHASE-ALU line

With XEVT 16 inserts with a very high positive rake angle and spiral cutting edges for fast machining of aluminum. To ensure excellence in aluminum machining in all industries, TaeguTec offers spectacular milling cutters in the CHASE-ALU line: the XEVT 16. With high-speed machining requirements as the focus of the and a unique "stopper" for firm clamping and stability. This guarantees high precision and excellent surface roughness when machining aluminum and non-ferrous metals thanks to the high positive spiral cutting edges and polished insert surfaces. Inserts always deliver excellent productivity in demanding applications such as spiral milling, straight milling and step milling, as well as other high-speed milling applications. In addition, the XEVT 16 is available in different corner radii and the XEVT 16 inserts are interchangeable with the current ones. TE90XE and TFM90XE cutters to improve the productivity of the XECT 16 insert on the market.

At DamenCNC we have a DMG-Mori CMX70U 3+2 machining center with which we make prototypes. We mill a lot of aluminum. We use exactly this type of inserts in our own machining center. The results are astonishing. What's also interesting is that you can use the cutter for so many different types of jobs. Because the XEVT-16 inserts fit all different cutter bodies, it is useful to have several. We have short and stubby specimens for roughing work. And then we have extra long cutters to get very deep into parts. These all use the same inserts. The inserts themselves are available in different radii, so the cutter can easily be adjusted to cut the radius you need in the bottom of a pocket.

These cutters also work well with the high-speed TeknoMotors that we sell. Usually they are sold with the ATC71 and then in the HSK63F version. The high power versions (7.5 to 10kW) can cut real aluminum at a comparable pace to the DMG-Mori machine. We recommend using the smaller diameters of 25 and 32 mm. The 50-80-100 mm face mills are nice, but then you end up at lower speeds where the engine is not as powerful. That is possible, but you should not push too much and actually take it easy.

Component features:

• Corner radius (RE): 0.8 mm
• Insert Length (INSL): 22.2 mm
• Insert Width (W1): 11.2mm
• Insert Thickness (S): 5.5 mm
• Insert Bottom Length (BS):1.5 mm
• Maximum milling depth (APMX): 16 mm
• Minimum depth (apmin): 3.5mm
• Maximum depth (apmax): 12.0mm
• Feed per tooth minimum (fz): 0.1mm/rev
• Feed per tooth maximum (fz): 0.4mm/rev
• Ultra-high-speed machining of aluminum alloys and non-ferrous materials
• Various applications: shoulder milling, step milling, straight and spiral milling and slot milling
• Soft machining and excellent surface finish with high positive cutting edge and polished surface
• Safe design and no movement during high speed machining thanks to the V-bottom and stopper (XEVT)
• CHASE ALU (XEVT)
• XEVT insert for fast, versatile milling operations of aluminum alloys and non-ferrous materials
