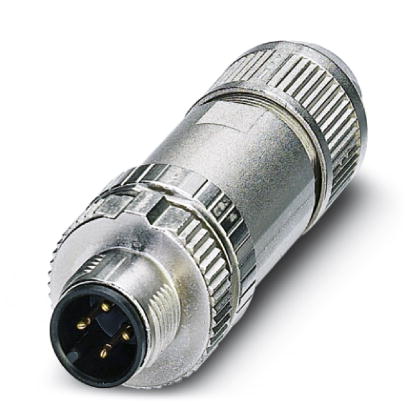

M12 4-pole Straight Male Shielded Connector - 1424666

These connectors are compatible with our plug and play sensor system that is used in the RTR sets. This connector is intended for those who which to connect other sensors than we supply, or to make custom cable lengths. The connectors are high quality push in type connectors, which makes the connection quite easy. The pins are colour coded which make it even easier to connect.

Component eigenschappen:

• Plug and Play with our Pluggable Inductive Sensor and RTR set
• Shielded version, perfect 360degree EMC shielding. (We advise to use this type, when using shielded cables)
• Degree of protection: IP65 (Cable mounted)
• Input wire 4mm to 8mm diameter
• Number of poles: 4
• Gender: MALE
• Type of Termination: PUSH-IN
• Polarisation: A (standard)
• Manufacturer part nr: Phoenix Contact 1424666 SACC-MS-4PTL SH SCO
